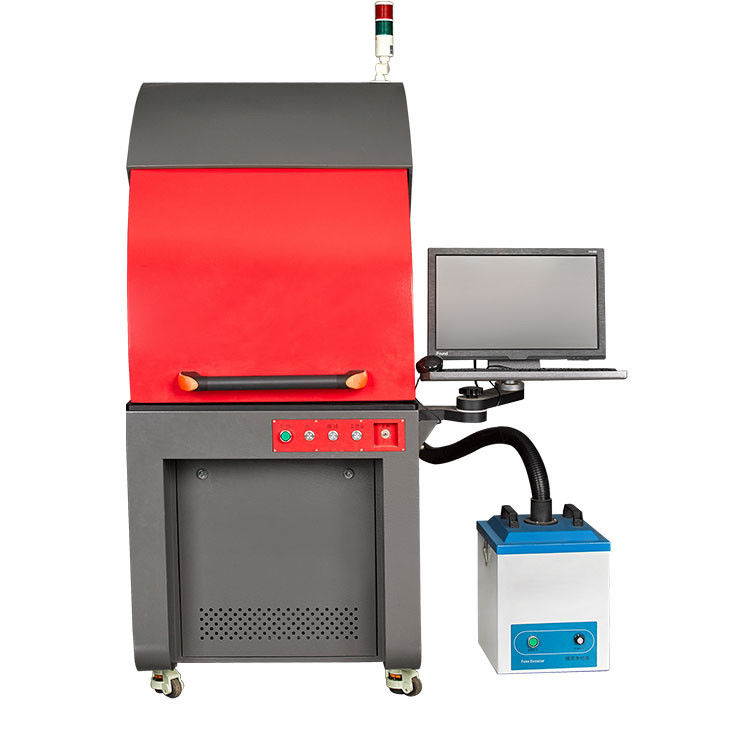

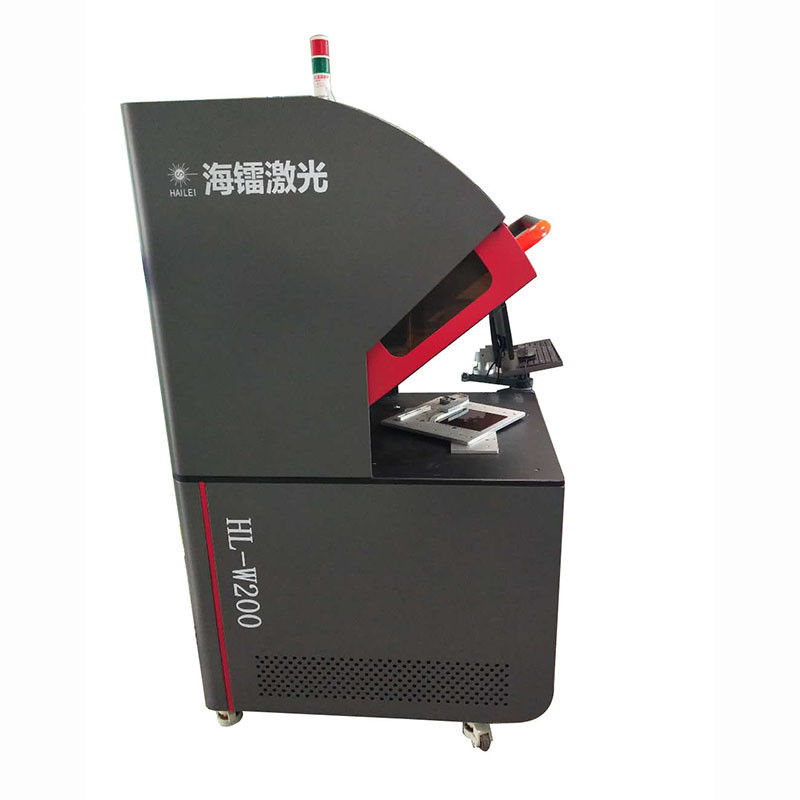

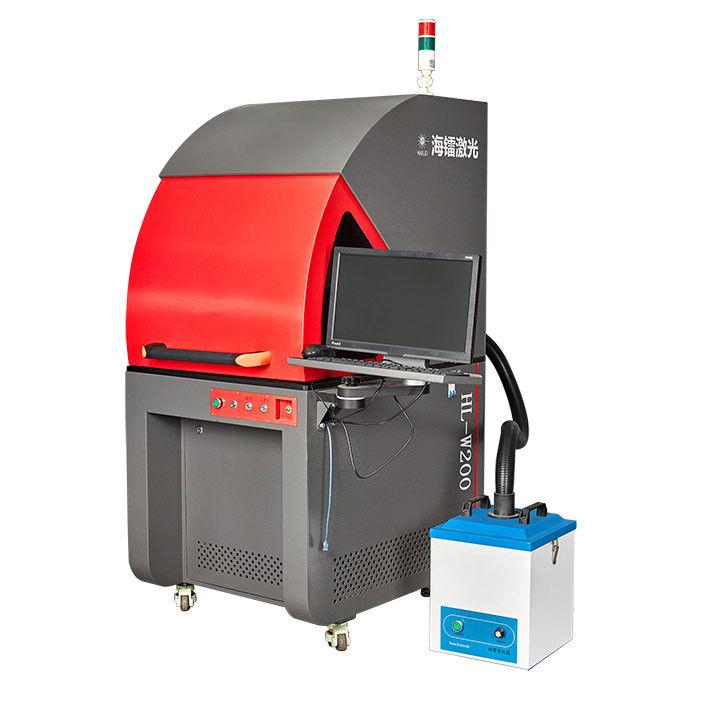

MOPA Laser Marking Machine For Welding And Marking Function German Original Imported Fiber Laser Easy To Operate Marking Equipment
Characteristics of MOPA Laser Marking Machine:
The MOPA laser welding and marking machine laser is a pulse laser based on the power amplifier technology of the main oscillator.
The laser welding and marking machine is a new type of laser marking system developed using advanced laser technology. It uses a German original imported fiber laser to output laser, and then achieves high-speed marking through high-speed precise galvanometer scanning. The electric-optical conversion efficiency is high, the marking is fine, the optical path is fully sealed against dust, and the cooling is by air cooling.
Product Features:
1.A laser marking machine that combines welding and marking for faster and more convenient operation.
2.The size is small, the beam quality is good, and the machine is equipped with a high-quality and substantial frame, ensuring high reliability and stability, and a beautiful appearance.
3.The machine has extremely low power consumption and requires no maintenance, with a long service life.
Technical parameter:
| Item | Product parameter |
| Product name | MOPA fiber laser marking machine |
| Average output power | 20W(continuous or pulse) |
| Laser wavelength | 1064nm |
| Power regulation range | 10% - 100%. |
| Repetition rate | 20KHz - 80KHz |
| Output beam quality | <1.5m² |
| Marking line depth | ≤1.2mm |
| Minimum focusing spot | The 0.005 mm |
| Minimum character height | The 0.15 mm |
| repeatability | ±0.001mm |
| Maximum linear marking speed | 12000mm/s |
| Marking format | Graphics, text, bar code, QR code, date, shift, batch number, serial number file link |
| Operating system | WINXP Chinese |
| Standard engraving range | 100mm*100mm |
| Optional engraving range | 50mm*50mm - 150mm*150mm - 200mm*200mm |
| Power consumption of the whole machine | ≤550W |
| Electricity demand | 220V±10%/50HZ/10A |
| Cooling mode | Air cooling |
| Laser lifetime | ≥ 100,000 hours |
| laser | Germany |
| Use environment | Clean and dust-free, no source |
Application field:
Welding:
Mainly used for consumer electronics precision parts welding, 3C sheet welding.
Marking:
Laser welding marking machine is used for alumina black marking, color marking and marking metal and a variety of non-metals, suitable for some occasions with higher requirements for fineness, depth and speed.
Used in mobile phone communication, electronic components, integrated circuits, hardware products, auto parts, tool accessories, precision instruments, glasses and watches, jewelry, plastic keys, PVC pipes, sanitary ware and other industries, can also be configured according to industry needs portable rack or rotary tooling.
Applicable materials: common metals and alloys (copper, iron, aluminum, zinc and other metals), rare metals and alloys (gold, silver, titanium), metal oxides, special surface treatment (anodizing, electroplating, etc.), ink products (transparent buttons, printed matter), engineering plastics, ABS,(daily use, electrical housing), epoxy resin (electronic components housing, etc.)
Sample Display(Part Only)

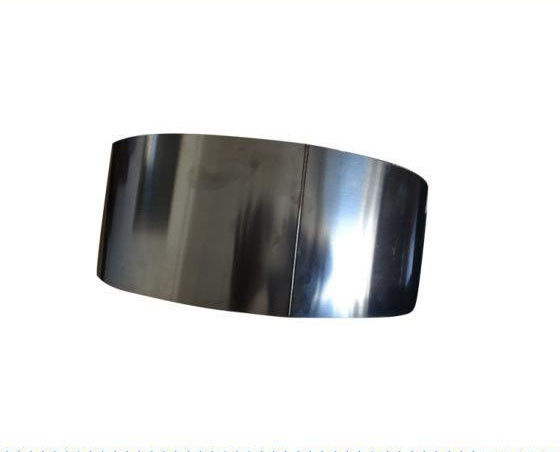

1.Welding samples

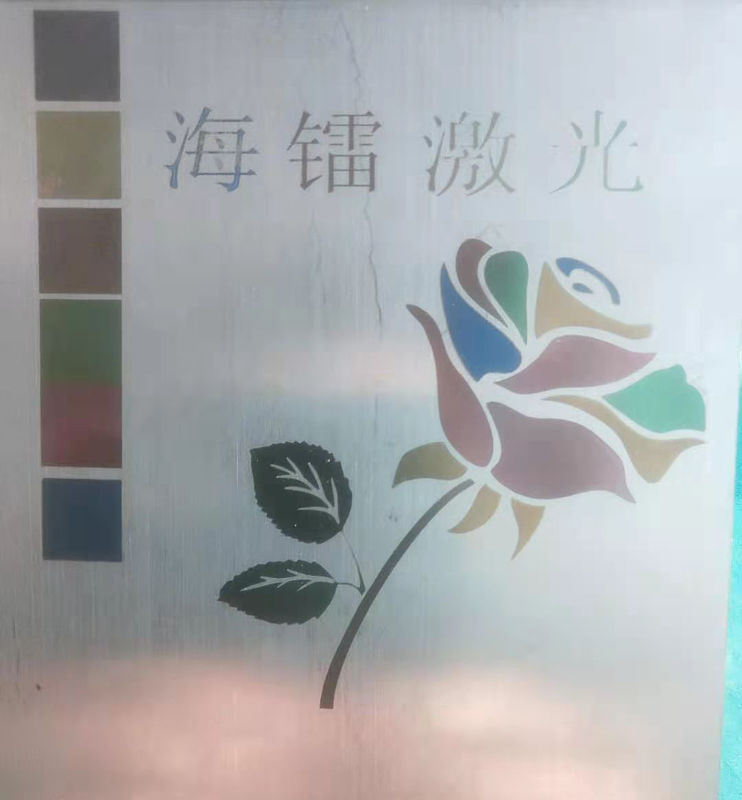

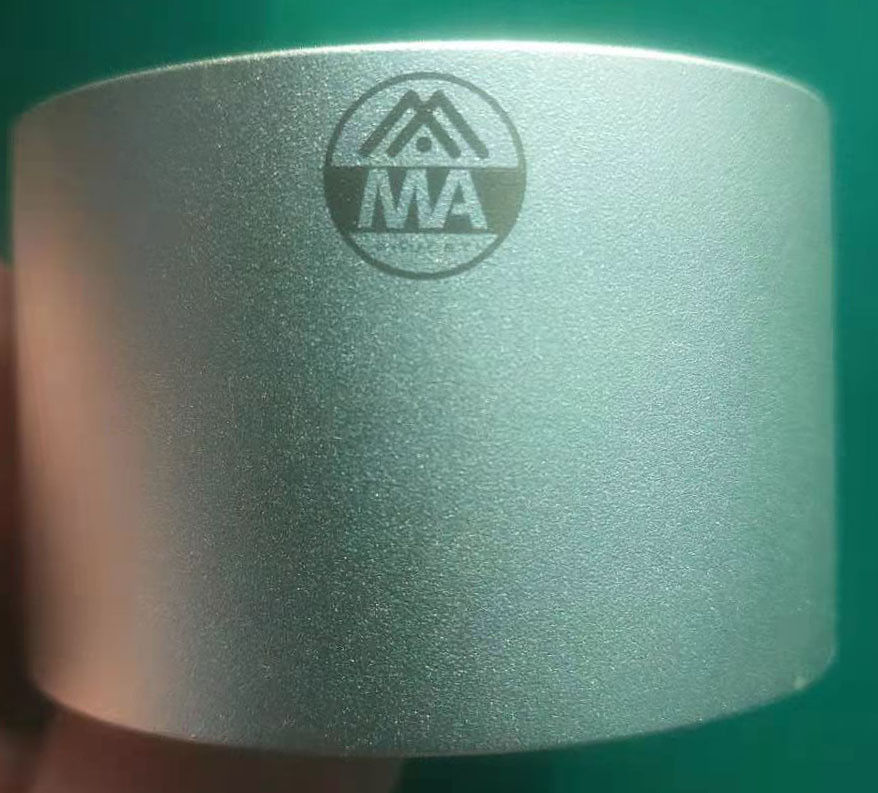

2.Marking samples
Profession and Honor
About this product,we also support customized services,If you would like to know further product information and requirements, please contact us online or send E-mail to us.Thank you for your time!
