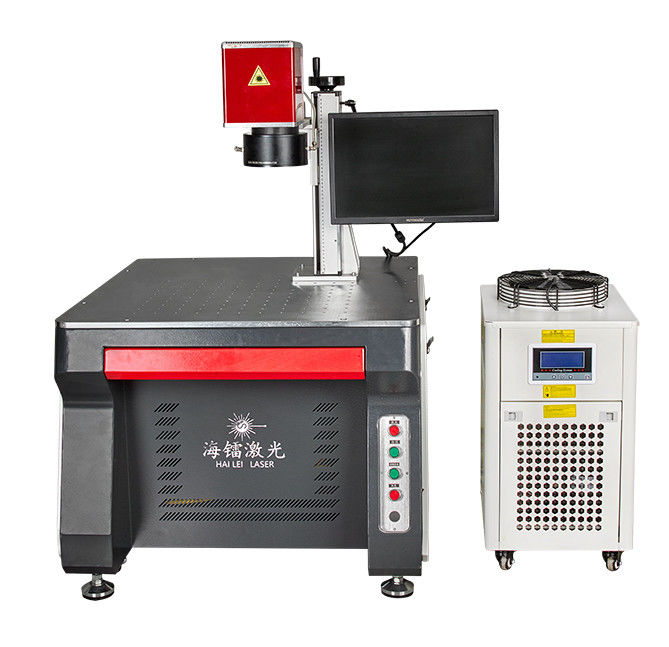

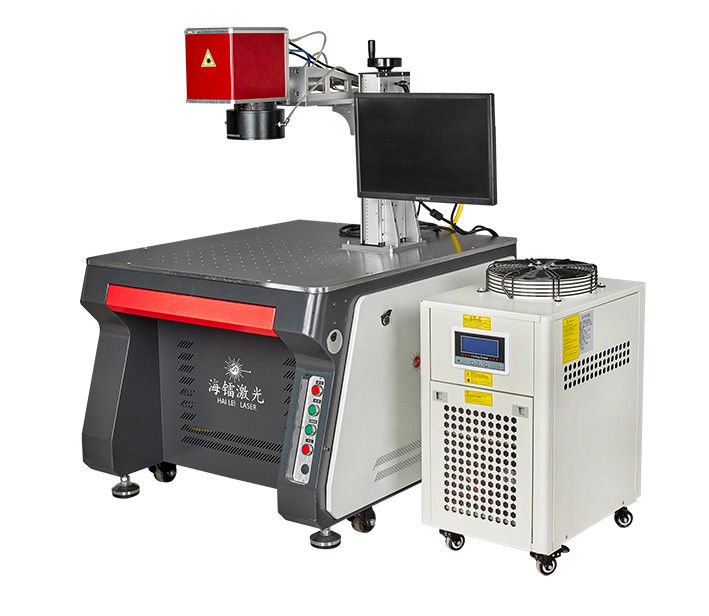

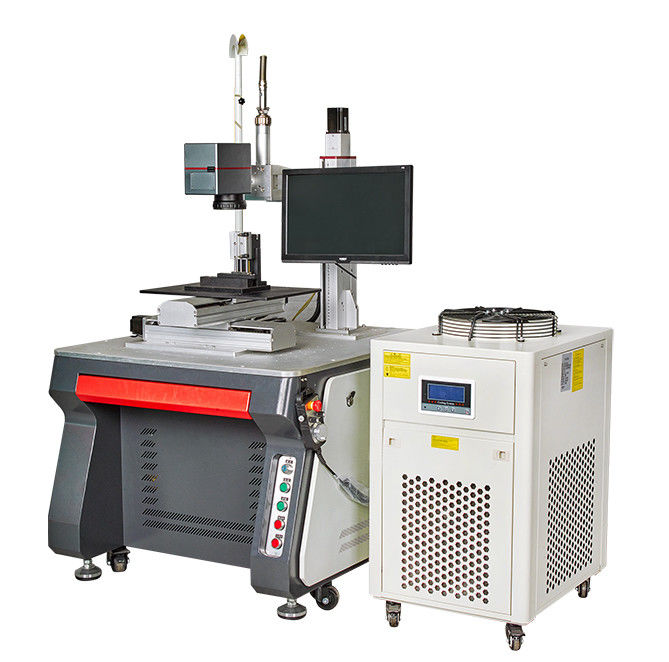

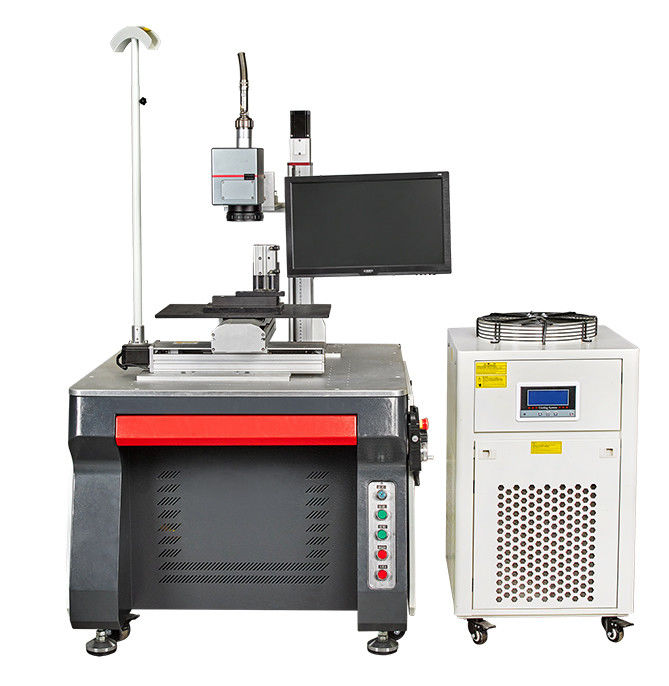

200W/500W/1000W Galvanometer Welding Machine With CCD Can Weld Precision Instruments
Characteristics of Galvanometer laser welding machine:
Product Features:
1,Galvanometer welding machine welding is very fine, super fast spot welding. Especially suitable for precision instruments, electronic components welding.
2,The advantages of this kind of welding machine include high laser power, a high weld aspect ratio, a small heat-affected area, minimal deformation, and quick welding speed.
3. Easy to use, centralized button operation, CCD visual screen display, and humanized design.
4.The welding efficiency is 5-10 times that of the ordinary welding machine, which greatly saves labor costs.
5.The split type chiller automatically cools according to the set temperature of the system, with good cooling effect and good heat dissipation to ensure the safe operation of the equipment; It has a good protective effect on the internal equipment and greatly improves the service life of the equipment.
6. Strong customization ability of special aircraft
Special aircraft customization ability is strong, can be tailored to customer demand exclusive models
Technical parameter
| Model number |
HL-ZJ-200W |
HL-ZJ-300W |
HL-ZJ-400W |
HL-ZJ-500W |
HL-ZJ-600W |
| Laser wavelength |
1064nm |
| Laser power |
200W |
300W |
400W |
500W |
600W |
| Pulse frequency |
1-100Hz 1-300Hz1-500Hz(continuously adjustable) |
| Pulse width |
0.1-20ms(continuously adjustable) |
| Maximum monopulse energy |
90J |
100J |
120J |
135J |
150J |
| Maximum single pulse welding depth |
0.1-0.5mm |
0.1-0.7mm |
0.1-1.0mm |
0.1-1.5mm |
0.1-2.0mm |
| Fiber core diameter |
0.6MM |
| Fiber output quantity |
≤4 channels |
| Spectroscopic method |
High-speed time spectroscopy or precision energy spectroscopy |
| Feedback mode |
Current real-time feedback or laser energy real-time feedback (either) |
| Observation system |
CCD visual image |
| Electricity demand |
380V±10%/50HZ |
| Rated power |
≤6KW |
≤8KW |
≤12KW |
≤18KW |
≤22KW |
| Cooling mode |
water-cooling |
| Main engine dimensions |
1200mm*700mm*1030mm or 1350mm*650mm*1100mm |
Application Fields:
Hailei Galvanometer laser welding machine is suitable for welding offline/online welding of mass production companies in electronics, communications, hardware and other industries. The main application areas include high-efficiency laser spot welding or sealing welding of mobile phone shields, metal mobile phone casings, metal capacitor casings, hard drives, micro motors, sensors and other related products.

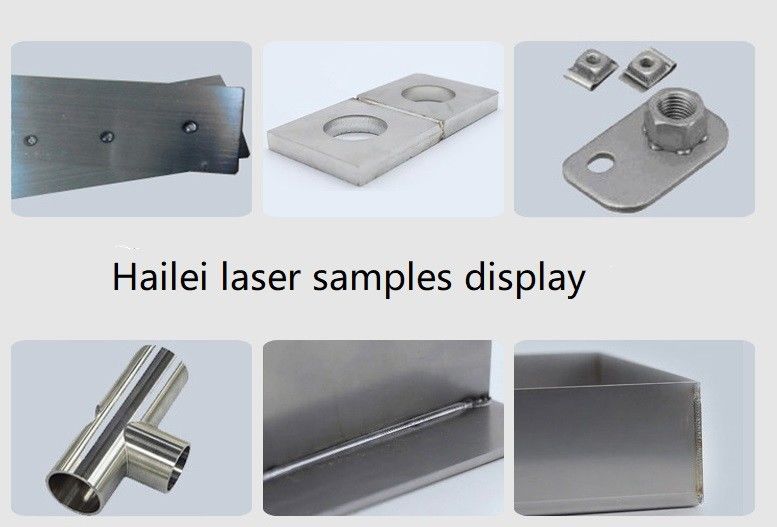

Sample Display(Parts Sample)
Profession and Honor
About this product,we also support customized services,If you would like to know further product information and requirements, please contact us online or send E-mail to us.Thank you for your time!
