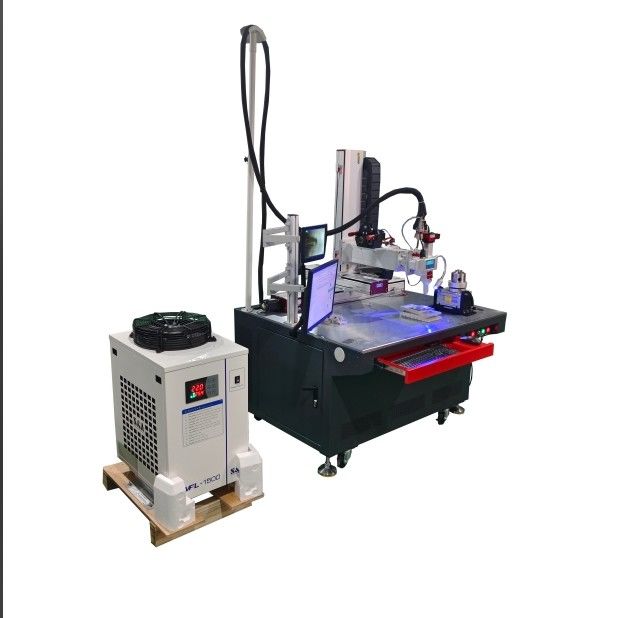

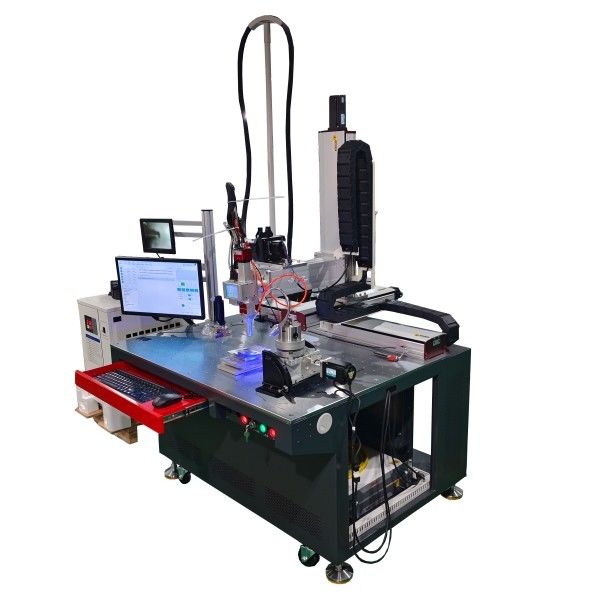

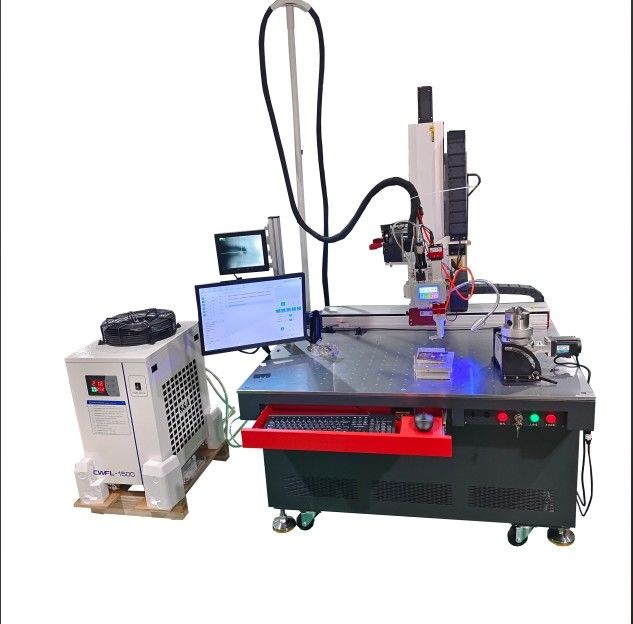

1500W Five-Axis Continuous Laser Welding Machine Automatic Welding precise Positioning Welding Machine
Characteristics of five-axis continuous laser welding machine:
Product Advantages:
1. International brand laser, stable performance, higher photoelectric conversion rate, longer service life of equipment.
2. The motion shaft has high positioning accuracy, sensitive response, shock-proof design, no need to move the workpiece manually, and can be automatically moved for welding, and the welding efficiency is 5 times that of the ordinary welding machine.
3. Equipped with 6 Axis and CCD visual monitor,Can enlarge the product, accurate positioning, easy to observe the weld surface molding quality, stable welding quality, more accurate welding points.
4. Welding system operation software, easy to learn, users can easily edit welding trajectory, such as: points, lines, arrays, etc.
5. The standard industrial water cooler provides good protection for the internal components of the equipment and greatly improves the service life of the equipment.
Technical parameter
| Item |
Technical parameter |
| Laser power |
1000W~6000w(optional) |
| Frequency range |
10-50(KHZ) |
| Pulse width range |
0-15ms |
| Laser wavelength |
1070nm |
| Welding range |
X1000-Y500-Z500mm(Range size can be customized) |
| Application attribute |
All kinds of gap connection, visual weld tracking welding, robot automatic welding |
| Light output mode |
XY Double Swing/Single head (optional) |
| Fiber diameter |
100UM |
| Rated power |
6kw/9kw |
| Working power supply |
220V/380V(optional) |
| Visual localization |
CCD |
| Cooling mode |
water-cooling |
| Application material |
Gold, silver, titanium, nickel, tin, copper, aluminum, iron, stainless steel, carbon steel |
Application Fields:
Sample Display(Parts Sample)
Profession and Honor
Please note: All photos on this site are real. Due to changes in lighting, shooting Angle, and display resolution, the image you see may have some degree of chromatic aberration. HailLei Laser is a professional laser equipment manufacturer with 18 years of history. Our products and equipment are updated and upgraded every year.
If you are interested in this product and want to know more details, please contact us on line or E-mail to us, we will have professional engineers to serve you. Thank you for your time.
