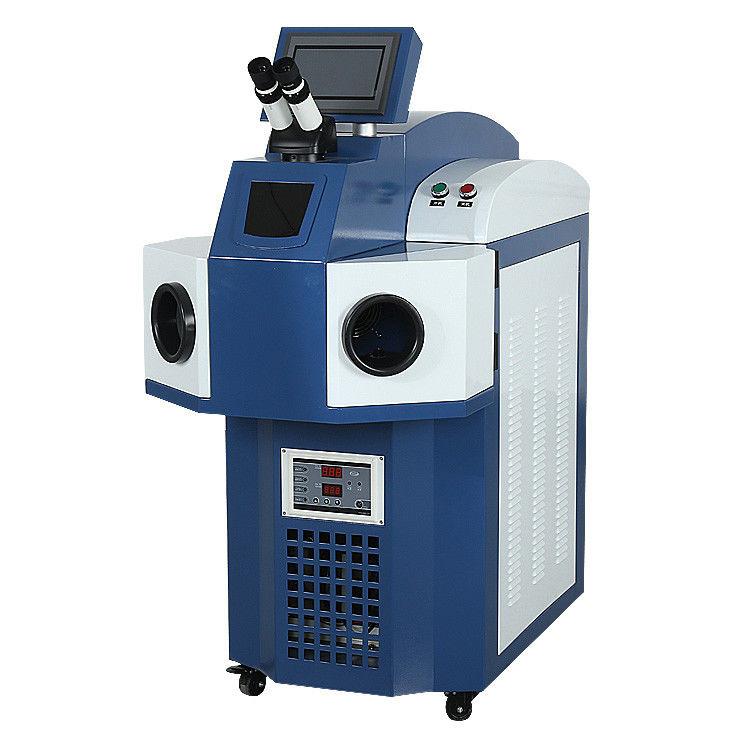

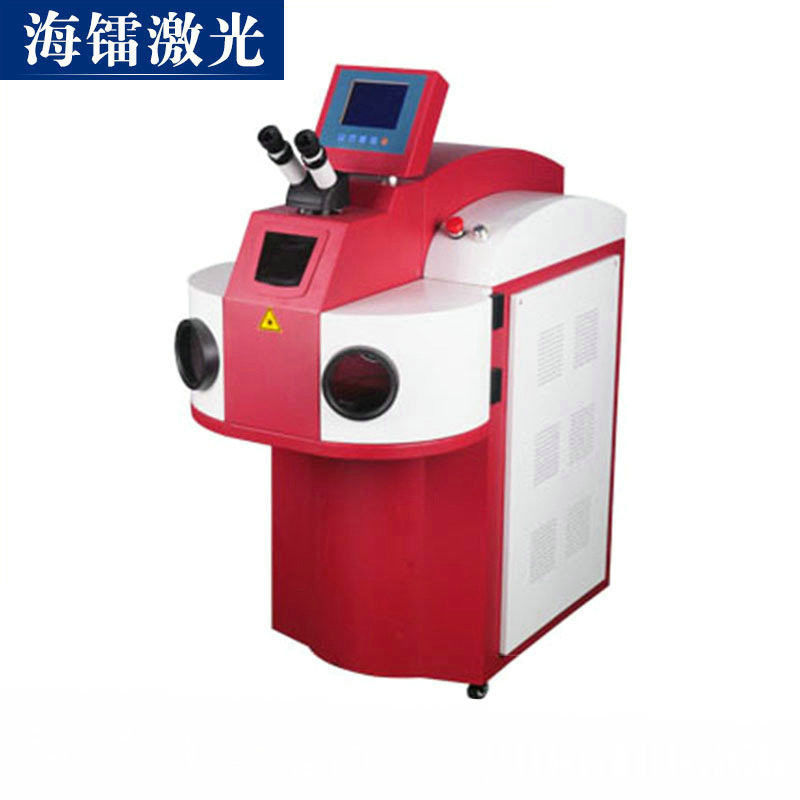

Jewelry Laser Spot Welding Machine Integrated Desktop Jewelry Welding Machine
Characteristics of Laser Spot Welding Machine:
HI series laser spot welding machine is improved by the introduction of advanced German design technology, the series of products using ergonomic design, and the use of international top accessories production, the whole machine is more reliable, more durable, more convenient, more efficient. In addition, the laser spot welding machine is also used for the welding of small components, such as motor electrodes. Optical fiber devices, etc., can be welded in a greenhouse or under special conditions.
Product Advantages:
1.Observation system
Microscope observation system magnification :17.5X+ word cursor center and the light spot center align (adjustable) with high-speed electronic optical filter protection device, protect the eyes from laser damage during operation, alleviate the operator's eye fatigue, improve work efficiency, can be installed according to the requirements of high cleaning CCD monitoring system.
2.Control system
The exclusive use of micro industrial computer, including all the functions of ordinary computers, its stability and anti-interference ability is far better than the same industry products (general manufacturers use low performance, low-cost single-chip microcomputer control board). Equipped with large screen high definition LCD screen, the software operation interface can choose Chinese interface, pure English interface, Chinese and English mixed interface, or any other specified language, easy to operate and use.
3.Simple operation
The operation interface is simple and clear, easy to learn and understand. Real-time automatic saving of operating parameters, easy to continue working.
4.Precision welding
Double closed loop precision control is used to ensure that the energy of each solder joint is uniform.
5. Ceramic condenser cavity imported from Germany, corrosion resistance, high temperature resistance, cavity life of 8-10 years.
6. High production efficiency, fast welding speed.
7. Electric adjustment of light spot size.
Technical parameter
| item |
Item parameter |
| Product name |
Jewelry laser spot welding machine |
| Model number |
HL-SD-200W,HL-SD-400W |
| Maximum laser power |
200W |
| Laser wavelength |
1064um |
| Maximum energy of a single pulse |
90J |
| Laser welding working distance |
100mm~130mm |
| Laser welding depth |
0.1 mm to 3.3 mm |
| Pulse width |
Ms 0.5 ~ 20 ms |
| Spot size |
0.2 mm to 2.2 mm |
| Overall power |
< 3.5 KW |
| Power requirements |
Single-phase 220V±15% 50Hz15A |
| Voltage regulation range |
100-400VDC |
| Maximum pulse current |
540A |
| Water pressure protection |
0.025 Mpa or less |
| Cooling water temperature |
≤35°C |
| Water temperature protection |
45°C |
| Cooling water flow |
10L/min |
| Operating environment |
Clean dust free or less dust, temperature :55°F(13°C) to82° F(28°C) |
| Installation conditions and consumables |
220V±15%50HZ AC, providing more than 30A current. |
| Main consumables |
Xenon lamp, filter element, argon |
| Supporting equipment |
Water cooler |
Application Fields:
Jewelry laser spot welding machine, suitable for gold jewelry laser welding, silver jewelry laser welding, titanium alloy jewelry laser spot welding, stainless steel jewelry laser welding, all kinds of jewelry laser spot welding, and small metal parts manual laser welding.
Widely used in various metal materials: gold, silver, platinum, copper, stainless steel and other metal materials. Includes: Rings, earrings, bracelets,Necklaces, tie clips, cuffs and other jewelry, metal jewelry holes, spot welding trachoma, repair seam pattern, Mosaic parts and claw parts of laser welding.
