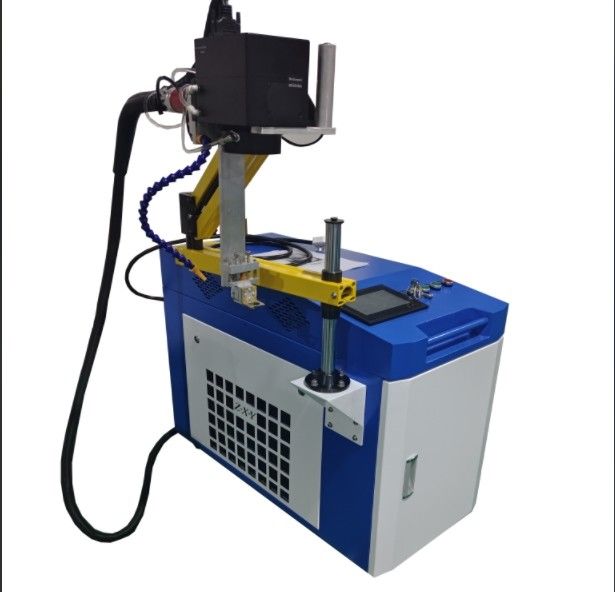

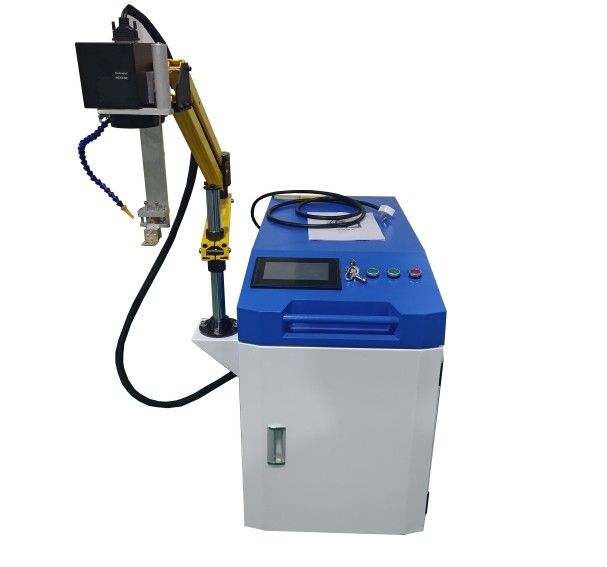

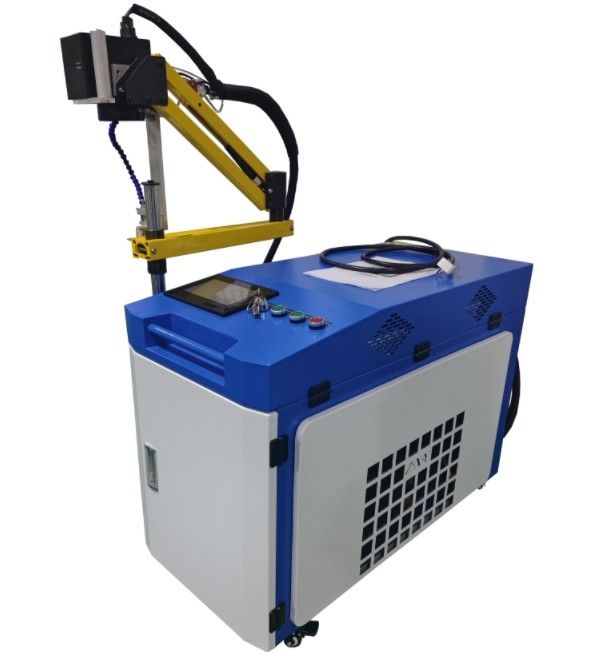

HandHeld Galvanometer Welding Machine Mini Galvo Laser Welding Machine Easy To Operate
Characteristics of Hand-held Galvanometer laser welding machine:
Product Features:
Galvanometer welding machine welding is very fine, super fast spot welding. Especially suitable for precision instruments, electronic components welding.
1.WELDING EFFICIENCY
Using high-speed scanning galvanometer, support continuous welding, 10 minutes can complete a group of battery welding, welding speed, improve our production efficiency.
2.LASER SPOT WELDING
Can be spot welding, can also be continuous welding the welding surface is smooth and bright, can be repeated welding, no need to polish after welding.
3.EASY OPERATION
The equipment is easy to operate and learn. You can also change the parameters on the touch screen.
Small size, does not take up space, but also can drag it around to move welding. Equipped with a simple mechanical arm, it can move and weld at multiple angles.
4.COST SAVINGS
This one has the same laser and lens as the gantry welding. Just to help customers save costs, save the cost of the console part, and help you save labor costs.
6. Strong customization ability of special aircraft
Special aircraft customization ability is strong, can be tailored to customer demand exclusive models
Technical parameter
| Parameter item |
Technical parameter |
| Maximum laser power: |
1000W--3000W |
| Laser wavelength: |
1070nm±5nm |
| Power regulation range: |
5-95% |
| Power instability: |
2% |
| Transmission fiber core diameter: |
30um |
| Minimum light spot: |
The 0.2 mm |
| Fiber length: |
10m(optional) |
| Cooling method: |
Water cooling (2000W internal cycle) |
| Cooling water temperature: |
20 to 25 ℃ |
| Power Supply: |
AC 220V±10% ,50/60Hz |
| Working environment temperature: |
10 ~ 35 ℃ |
| Working environment humidity: |
95% |
Application Fields:
Hailei Galvanometer laser welding machine is suitable for welding offline/online welding of mass production companies in electronics, communications, hardware and other industries. The main application areas include high-efficiency laser spot welding or sealing welding of mobile phone shields, metal mobile phone casings, metal capacitor casings, hard drives, micro motors, sensors and other related products.

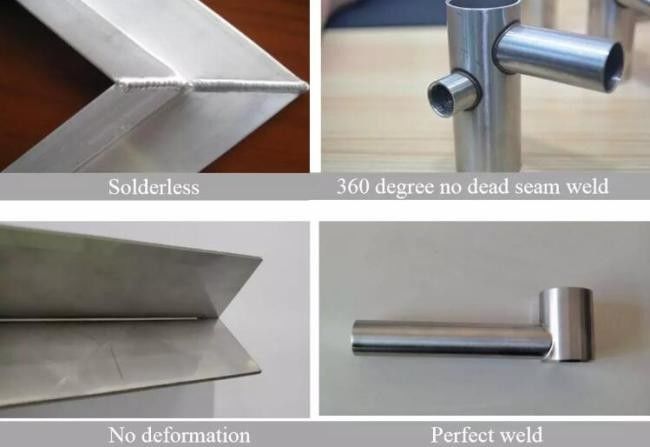

Sample Display(Parts Sample)
Profession and Honor
About this product,we also support customized services,If you would like to know further product information and requirements, please contact us online or send E-mail to us.Thank you for your time!
