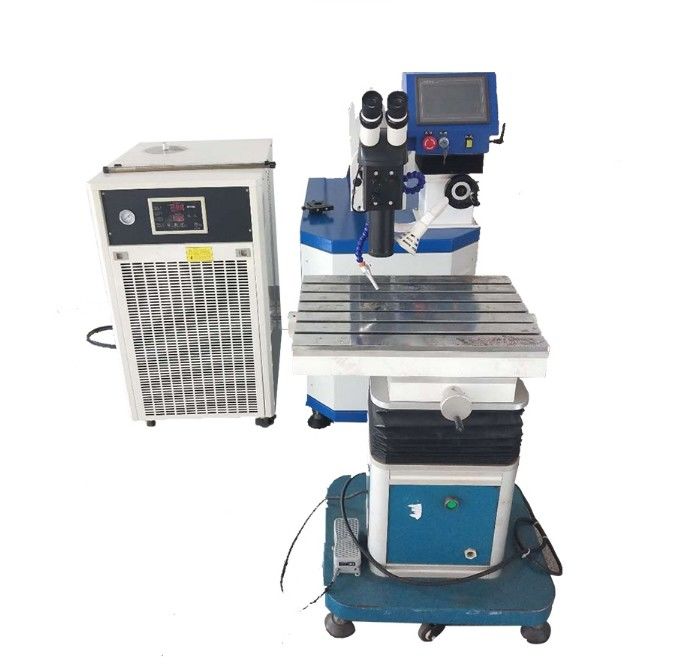

Mold Laser Welding Machine With Dual Channel Synchronous Argon Protection System
Characteristics of Mold laser welding machine:
Mold laser welding machine is a new type of welding processing, mainly for thin-wall materials of precision parts welding, can achieve butt welding, sealing welding, spot welding, overlap welding, etc., weld width is small, depth to width ratio is high, heat affected zone is small, deformation is small, welding speed, smooth weld, beautiful, no need to deal with or only simple treatment after welding, weld quality is high, no porosity, welding speed is high. Precise control of positioning accuracy, small focus point, easy to achieve welding automation.
The dual channel synchronous argon protection system is changed to make the argon protection better, the welding effect more firm and beautiful. At the same time, the original advantages are maintained - synchronous control with laser emission, which can maximize the saving of argon gas.
The improved built-in single chip microcomputer is used for double closed-loop precision control. Its stability and operation capability are much better than the small microcomputer and control card used in similar products.
Special microscope observation system with cross cursor, magnification 17.5X. Align the center of the cross cursor with the center of the laser spot (user adjustable). With high-speed electronic light filter protection device, protect the operator's eyes from laser damage, relieve the operator's eye fatigue, improve work efficiency.

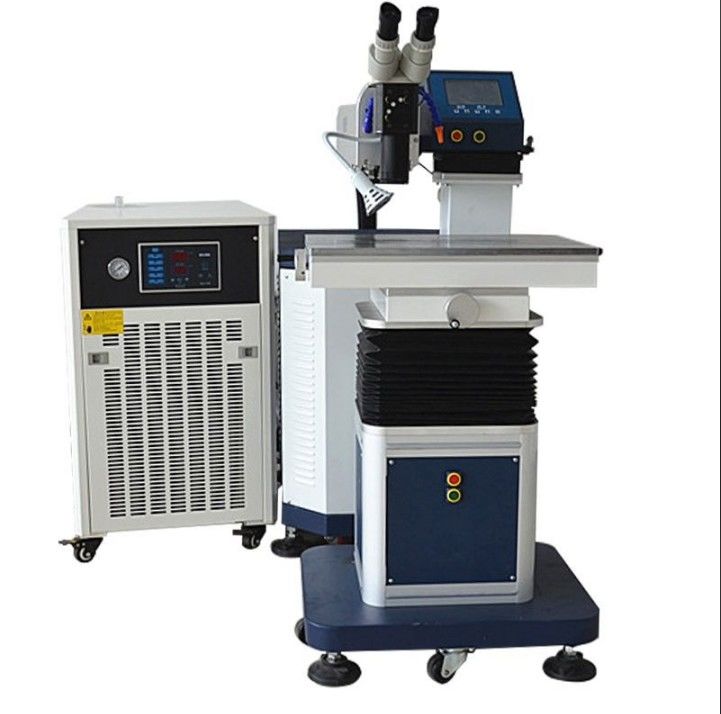

Product details
Technical parameter
| item |
Item parameter |
| Product model |
HL-M-200W~400W |
| Maximum laser power |
200W~400W |
| Laser wavelength |
1.064 (um) |
| Maximum energy of a single pulse |
90J |
| Laser welding frequency during combo |
0.5 Hz ~ 40 Hz |
| Laser welding depth |
0.1 mm to 3.5 mm |
| Pulse width |
Ms 0.5 ~ 20 ms |
| Laser welding working distance |
0.2 nm ~ 2 mm |
| laser |
0.2 mm to 0.8 mm |
| Spot size adjustable range |
Enhanced automatic workbench, optional electric workbench |
| Operating voltage |
<11KW |
| Water pressure protection |
Single-phase 220V15%VAC50Hz40A or above |
| Cooling water temperature |
220 volts 50HZ AC, providing more than 30 amps of current (6 square meters), voltage stability. |
| workbench |
Three-dimensional workbench, |
| Use environment |
Clean no dust or less dust, temperature :55°F13~82°F28 ° C, humidity :5%~75% no condensation |
Application Fields:
The Mold laser welding machine is specially designed for the laser welding of super large molds, such as automobile molds, shell molds, tire molds, plastic shell molds of home appliances and other large plastic and die casting molds.
Can repair welding of course also suitable for small and medium-sized mold repair.

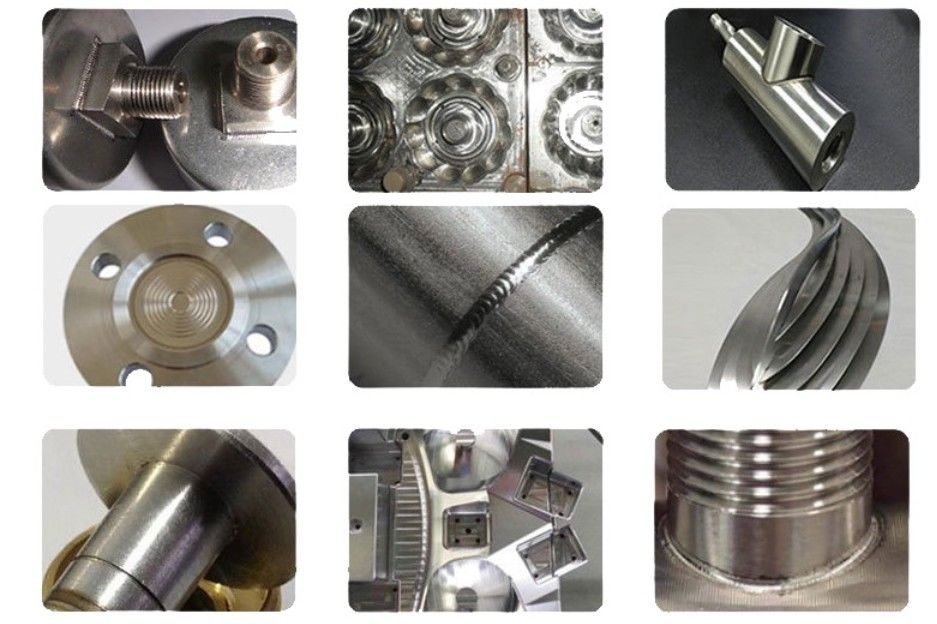

Sample Display(Parts Sample)
