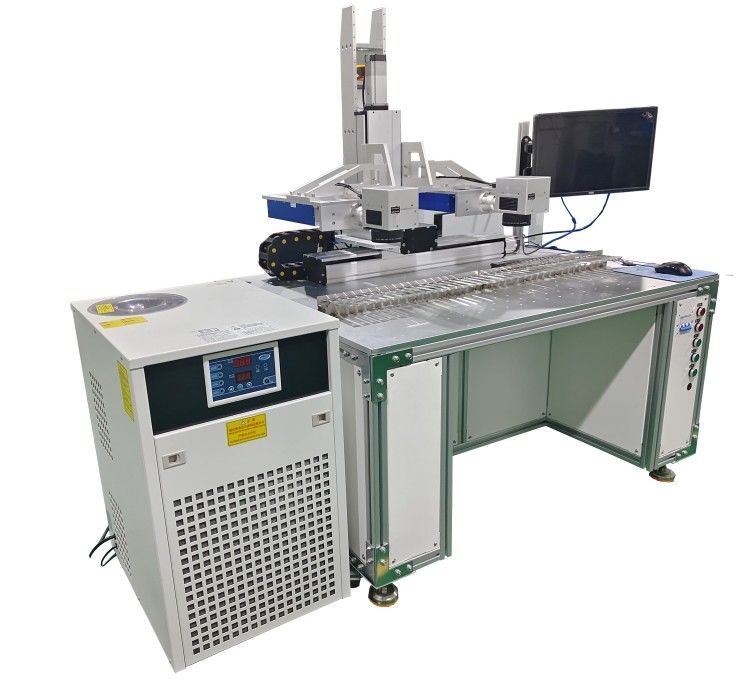

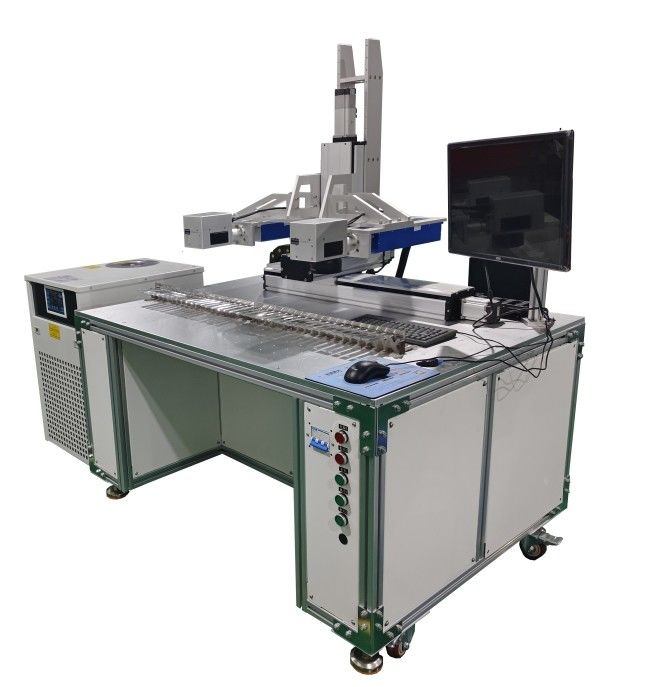

Double Head Glass Laser Punching Machine Automatical Glass Laser Punching Machine
Double head glass laser Punching machine :
Product Advantages and characteristics:
The characteristics of glass laser punching machine mainly include high precision, high efficiency, environmental protection and no pollution, a wide range of application and high flexibility .
1.high-precision : laser drilling technology can achieve high-precision positioning and control, drilling accuracy can reach the micron level, minimal error . This means that the pattern and the position of the holes in the glass products processed with a laser hole punch can be very precise .
2.high efficiency : laser drilling speed is fast, can greatly improve production efficiency. The perforation speed of the laser equipment is 10-1000 times that of the traditional mechanical equipment, in addition, the model is double-head laser perforation, automatic completion of drilling, the efficiency greatly improves the production efficiency .
The laser punching machine can operate 24 hours, further improving the production efficiency .
3. Environmental protection and pollution-free : laser drilling process does not produce harmful substances, no pollution to the environment, in line with the environmental requirements of modern industry .
4.high flexibility : laser punching processing adopts a safe and clean non-contact processing mode, the nozzle will not touch the surface of the material, effectively avoid damage to the material. At the same time, the tracking sensor of the laser equipment can ensure that a certain height distance is maintained between the nozzle and the workpiece, so that it can punch holes on irregular planes such as inclined planes and concave and convex planes .
In addition, the laser punching machine can set the punching pattern or shaped hole at will, high flexibility .
Technical parameter
| Laser power |
Laser configuration parameter |
| Working mode |
120W |
| CW output mode |
Pulse selectable |
| Central wavelength (nm) |
1055-1070nm |
| Pulse width (ns) |
4-50ns |
| Operating frequency (KHZ) |
5-3000KHZ |
| Beam diameter (mm) |
7±1MM |
| Spot ellipticity (% |
> 90% |
Application Fields:
This equipment is used for all kinds of glass cutting, smart home display cutting, camera lens laser cutting, coated lens cutting, heterosexual glass laser cutting, LCD screen laser cutting, automotive central control glass cutting, mobile phone glass cover cutting, photovoltaic glass cutting and glass cutting perforation, etc. It can be widely used in high-precision marking and cutting of glass, drilling and cutting of sapphire, marking/drilling micro-holes/cutting of ceramics, cutting of LCD/OLED display panels, LED wafer scribing and cutting and other processing fields.
Sample Display(Parts Sample)
Profession and Honor
Please note: All photos on this site are real. Due to changes in lighting, shooting Angle, and display resolution, the image you see may have some degree of chromatic aberration. HailLei Laser is a professional laser equipment manufacturer with 18 years of history. Our products and equipment are updated and upgraded every year.
If you are interested in this product and want to know more details, please contact us on line or E-mail to us, we will have professional engineers to serve you. Thank you for your time.
