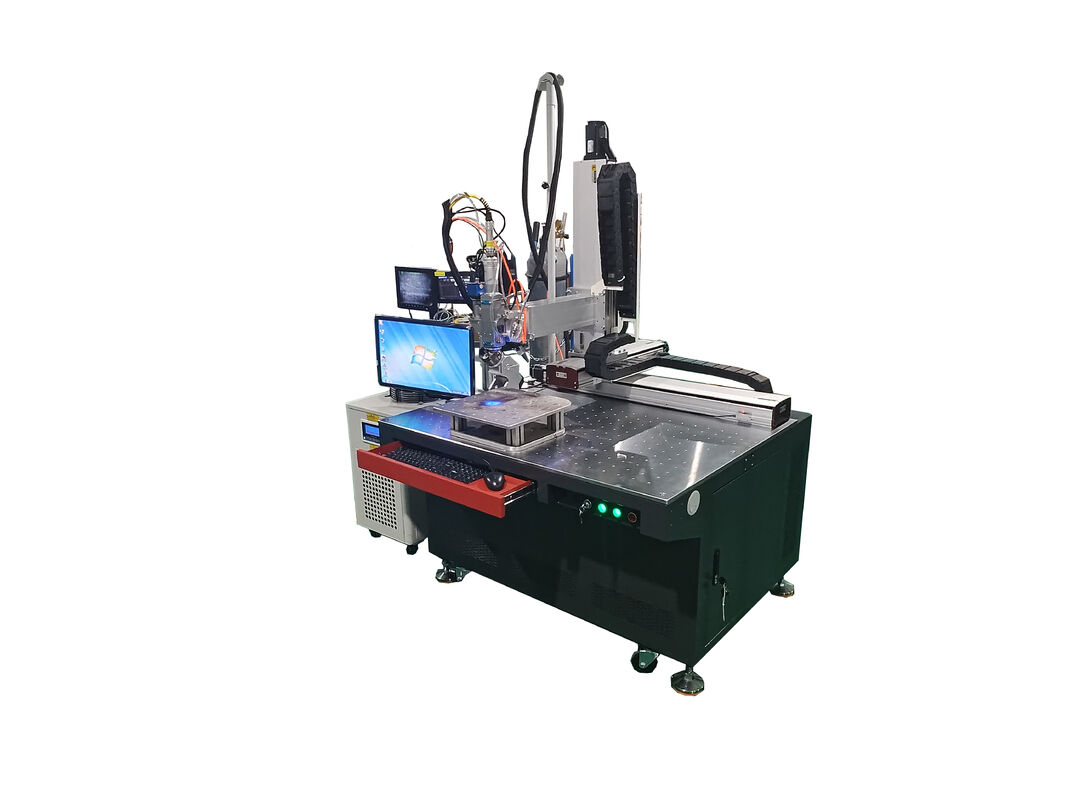

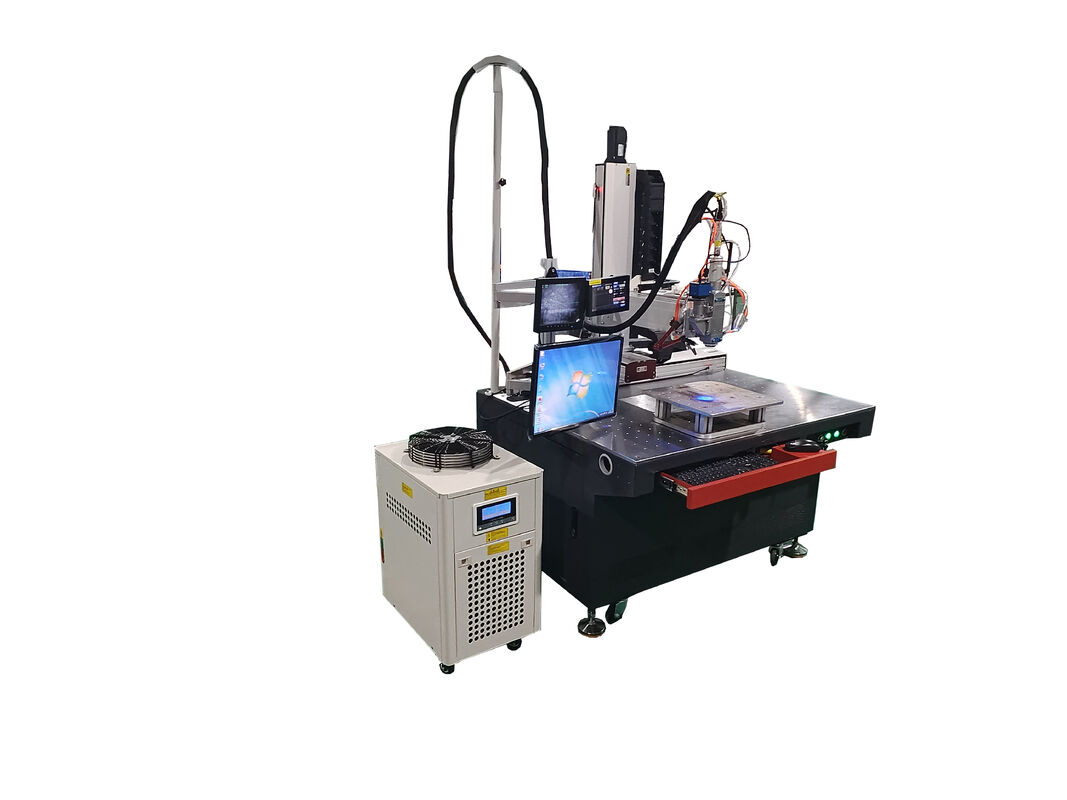

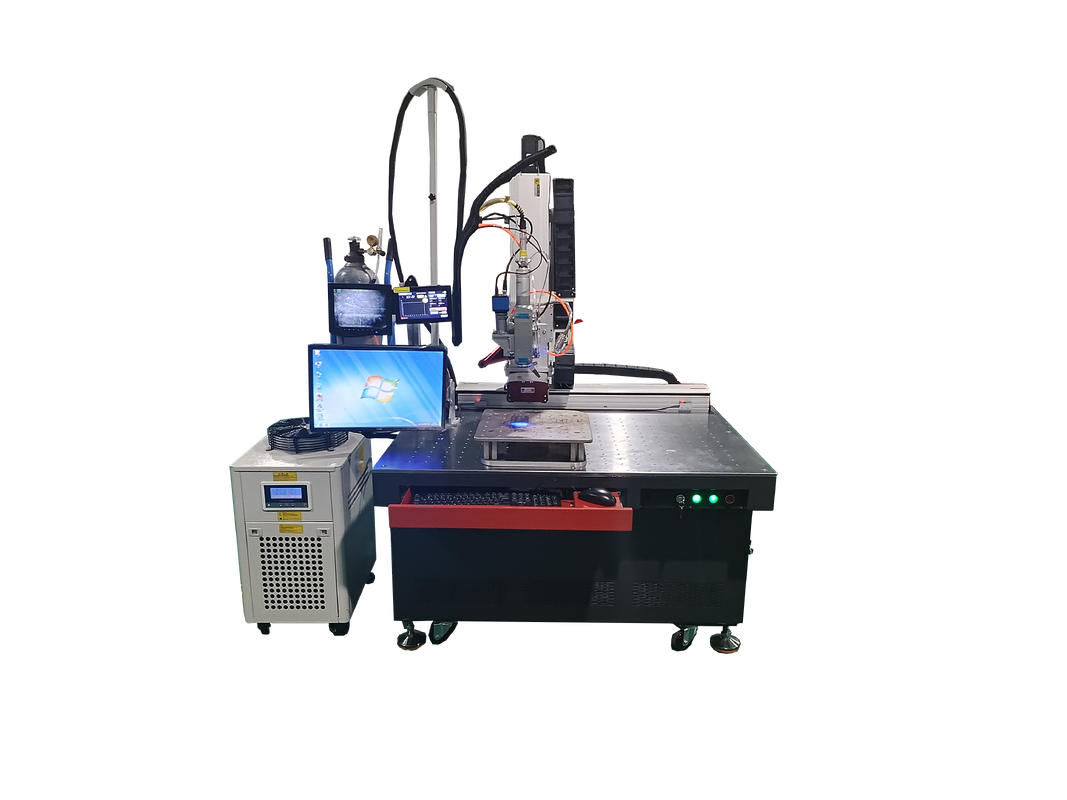

Name: Three-axis QCW Laser Welding Machine with 3-Axis Control, 1500W Peak Power, and 1070nm Wavelength for Precision Welding
Brand: Shenzhen Hailei Laser Technology Co., Ltd.
SKU: HL-QCW-150W
Availability: InStock

Home > Products > QCW Fiber Laser >

Three-axis QCW Laser Welding Machine with 3-Axis Control, 1500W Peak Power, and 1070nm Wavelength for Precision Welding

3-Axis Control QCW Laser Welding Machine

1500W Peak Power Three-axis Laser Welder

1070nm Wavelength Industrial QCW Welding System

Place of Origin:

Shenzhen China

Brand Name:

Hailei laser

Model Number:

HL-QCW-150W

Request A Quote

Three-axis QCW Laser Welding Machine with 3-Axis Control, 1500W Peak Power, and 1070nm Wavelength for Precision Welding

Product Details

Size:

850W*700L*625H（mm）

Weight:

41kg

Laser Wavelength:

1070nm

Power Input:

AC220V±10%，50/60Hz

Average Power In Paulse Mode:

150W

Maximum Peak Power In Pulse Mode:

1500W

Maximum Average Power In Continuous Mode:

250W

Maximum Pulse Energy:

15J

Laser Aiming And Positioning:

With Red Light Indication(CCD Position Of The Welding Head)

Cooling Method:

Forced Air Cooling

Highlight:

3-Axis Control QCW Laser Welding Machine

1500W Peak Power Three-axis Laser Welder

1070nm Wavelength Industrial QCW Welding System

Payment & Shipping Terms

Payment Terms

L/C,D/A,D/P,T/T,Western Union

QCW Fiber Laser solution delivering high repeatability pulsed laser output suitable for fine detail engraving and cutting

Get Best Price

Low noise Quantum Cascade Waveguide Fiber Laser engineered for sensitive detection and high resolution spectral analysis

Get Best Price

2W 1064nm Laser Engraver with 7000mm/s Speed and Wi-Fi App Control for Precision Marking

Get Best Price

QCW laser continuous welding machine, laser spot welding machine, laser welding equipment, laser continuous welding machine manufacturer

Get Best Price

Contact Now

Product Description

Three-axis QCW Laser Welding Machine

The 3-Axis QCW Laser Welding Machine is an industrial-grade device that integrates high efficiency, precision, and stability. Utilizing advanced QCW (Quasi-Continuous Wave) laser technology coupled with a 3D motion control system, it enables multi-axis simultaneous welding for complex workpieces. This machine excels in precision welding of metal materials, particularly thin sheets, dissimilar metals, and micro-parts. Its high beam quality, narrow weld seams, and minimal heat-affected zones (HAZ) significantly enhance welding quality and productivity, making it indispensable in precision manufacturing applications.

Core Advantages

Precision 3-Axis Control, Flexible Welding

3-axis linkage (X/Y/Z) supports multi-angle rotation and positioning for irregular parts
±0.01mm minimum positioning accuracy, ±0.005mm repeatability for consistent welds
Offline programming and trajectory simulation reduce setup time

QCW Technology, Superior Efficiency

High-power density laser (up to 3000W) enables switchable deep penetration or thermal conduction welding
Adjustable pulse width (0.1-20ms), frequency (1-500Hz) for materials 0.05-5mm thick
HAZ ≤0.1mm, preventing deformation or cracks

Smart System, User-Friendly

10" touchscreen + visualization software for parameter setting, real-time monitoring, and diagnostics
Built-in templates, customizable parameter storage
Safety features: laser shield, fume extractor, emergency button; CE/ISO compliant

Applications

Electronics
PCBs, sensors, connectors

Medical
Stainless tubes, Ti alloys

Automotive
Battery tabs, heat sinks

Hardware
Jewelry, watch components

Key Differentiators

Dynamic Power Adjustment: Real-time modulation of pulse/frequency for multi-layer welding
Closed-Loop Feedback: Monitors weld temperature/morphology for auto-correction
Modular Design: CCD positioning, seam tracking modules

Service & Support

Free installation training and 24/7 technical support
Customized welding solutions for challenging materials
