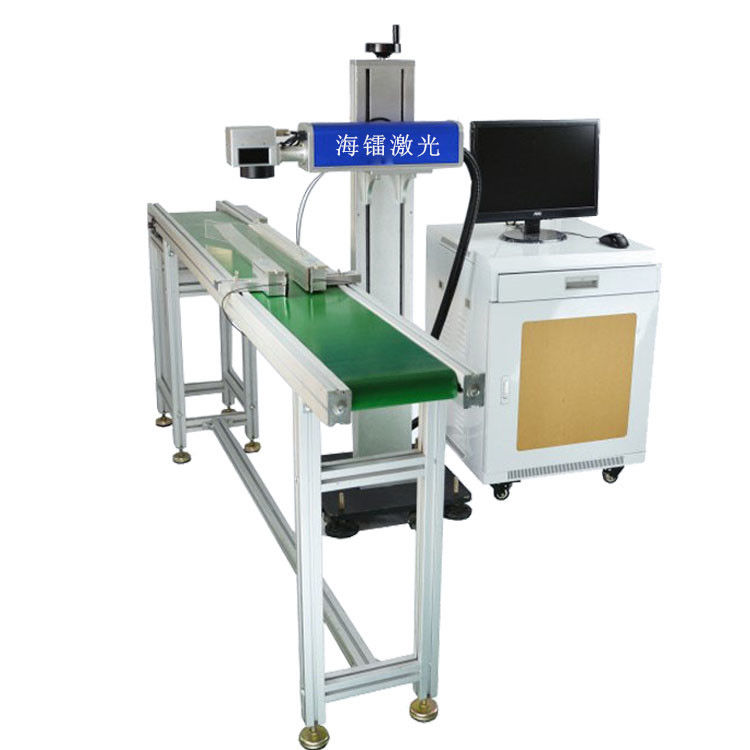

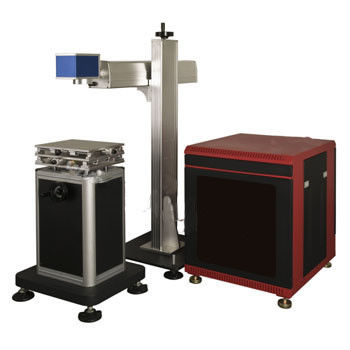

Flying Laser Marking Machine High Marking Speed Automated Production Support Customization
Characteristics of Flying Laser Marking Machine:
The flying laser marking machine is a laser inkjet coding system which combines the vibration mirror scanning with the movement of the workbench on the assembly line. In the process of inkjet marking, the production on the production line constantly flow, thus greatly improving the production efficiency, so that the laser machine to adapt to the modern industrial production requirements, compared with the traditional marking machine requirements marking content can not be too complex, otherwise affect the speed of marking, directly with the line flat, reduce the loading and unloading manpower, the operator can avoid the harsh production environment.
Product Features:
1.Automated production, efficiency is greatly improved. Marking speed, improve production.
2.The laser flight marking machine can mark a unique serial number or bar code for each product, and can not be modified or erased, and has a better anti-counterfeiting and anti-transiting effect.
Technical parameter:
| item |
Item parameter |
| Device name |
Flying laser marking machine |
| Laser power |
30W/60W |
| Laser repetition rate |
1.2KHz to 25KHz |
| Laser wavelength |
1064um |
| Marking range |
150mmX150mm |
| Minimum line width |
The 0.1 mm |
| Minimum character |
The 0.4 mm |
| Marking speed |
≤7000mm/s |
| Marking depth |
≤1mm |
| repeatability |
±0.01mm |
| Maximum line speed |
70m/min |
| Pipeline speed |
≤30m/min |
| Number of flight marking lines |
<8rows |
| Character type |
Chinese and English characters, mathematical symbols |
| Electricity demand |
220V(±10%)/50Hz/15A |
| Gross power |
< 1.2 kW |
| Operating temperature |
5 ℃ to 35 ℃ |
| Cooling mode |
Air cooling |
| Machine weight |
150KG |
| Overall dimension |
1080mmX530mmX1335mm |
Application field:
The flying laser marking machine is Widely used in tobacco, food, medicine, dairy products, beverages, alcohol, daily chemical supplies, cable, pipe, wood flooring, electronics, home appliances and other industries. It can easily achieve fine, clear, permanent, efficient, safe and clean laser marking effect on paper, plastic, PET, paint, PVC, glass, metal and other materials.

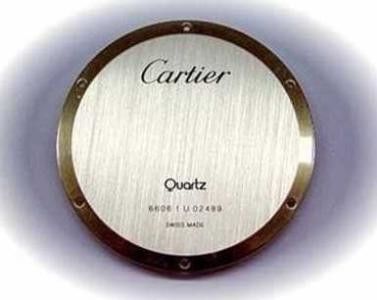

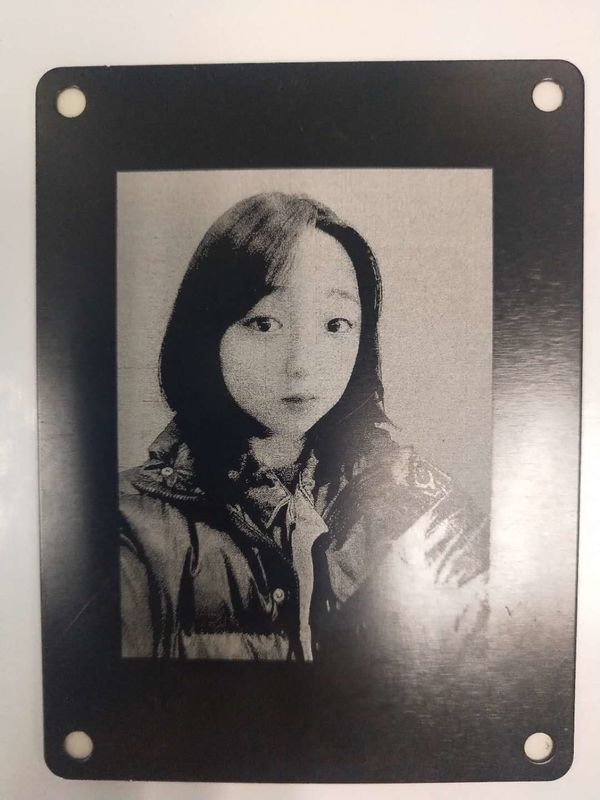

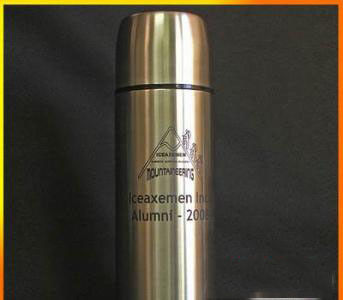

Sample Display(Part Only)
Profession and Honor
About this product,we also support customized services,If you would like to know further product information and requirements, please contact us online or send E-mail to us.Thank you for your time!
