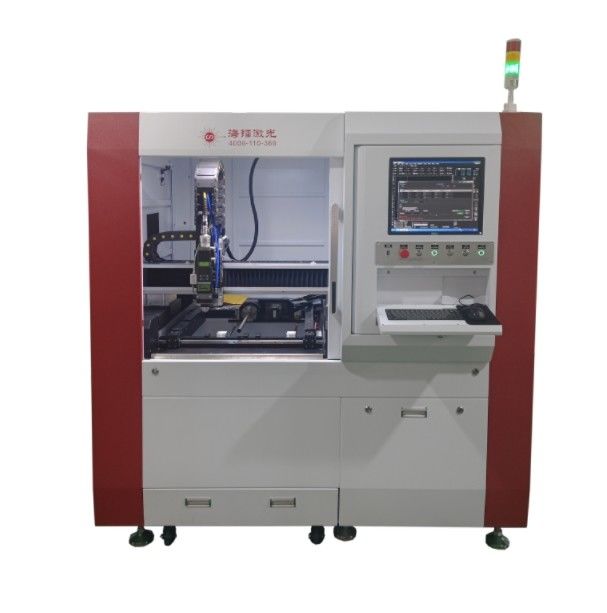

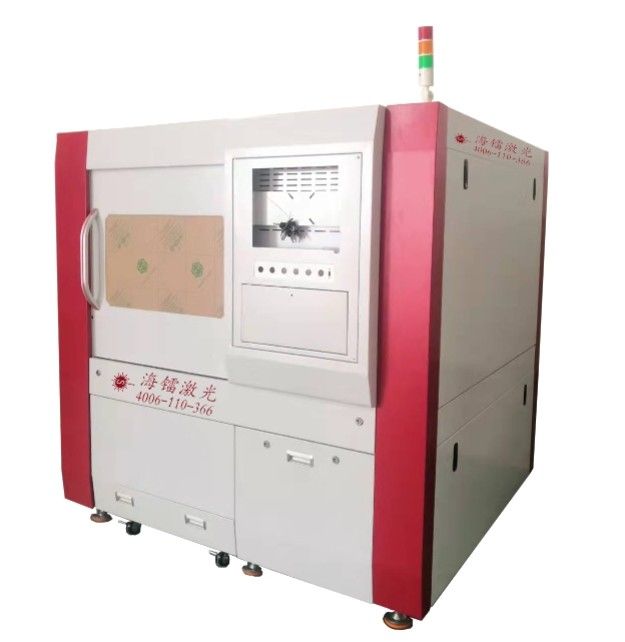

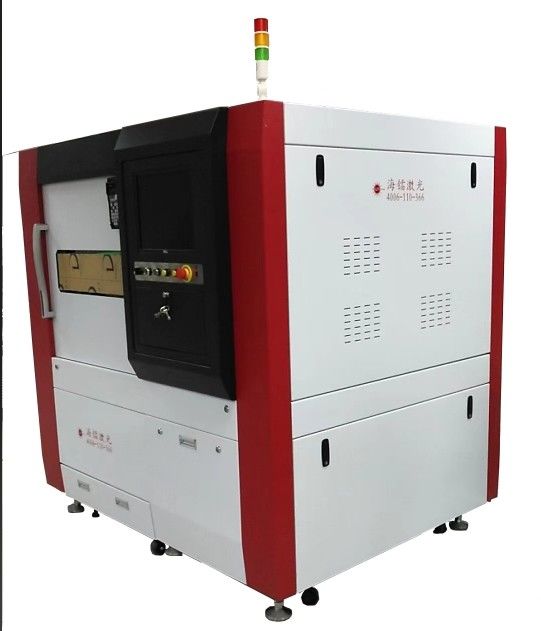

Precision Fiber Laser Cutting Machine
Fiber laser cutting machine is the use of fiber laser output high energy density laser beam, and focus on the working surface, so that the cutting of the working part of the instant melting and vaporization, through the computer control CNC machine mechanical system to achieve automatic cutting, is a concentrated beam, numerical control technology, precision machinery technology as one of the high-tech equipment.
Product Features:
Fiber laser cutting machine is the use of high precision linear motor working platform, high precision, fast speed; The whole processing process computer software automatic control, software interface real-time feedback, timely understanding of the processing state, non-contact processing program, no mechanical stress deformation, simple operation, small cutting gap, high efficiency, smooth appearance, no burr, cutting speed, safe operation, stable performance, high cutting precision.
• Utility model patent integrated design, can be equipped with different types or manufacturers of laser light sources;
• Compact, safe, practical and reasonable;
• Using optical marble platform, shock-proof frame design, suitable for high-speed movement, high stability;
• High precision, full feedback linear motor working platform, fast speed;
• Optional large format high-precision visual positioning, automatic precision correction;
• Multi-functional integrated control, automatic control of processing software, real-time feedback of software interface;
• Display each function and each part of the processing state, non-contact processing mode, no mechanical stress deformation.
Technical parameter
| Model number |
HL-ZJ-200W |
HL-ZJ-300W |
HL-ZJ-400W |
HL-ZJ-500W |
HL-ZJ-600W |
| Laser wavelength |
1064nm |
| Laser power |
200W |
300W |
400W |
500W |
600W |
| Pulse frequency |
1-100Hz 1-300Hz1-500Hz(continuously adjustable) |
| Pulse width |
0.1-20ms(continuously adjustable) |
| Maximum monopulse energy |
90J |
100J |
120J |
135J |
150J |
| Maximum single pulse welding depth |
0.1-0.5mm |
0.1-0.7mm |
0.1-1.0mm |
0.1-1.5mm |
0.1-2.0mm |
| Fiber core diameter |
0.6MM |
| Fiber output quantity |
≤4 channels |
| Spectroscopic method |
High-speed time spectroscopy or precision energy spectroscopy |
| Feedback mode |
Current real-time feedback or laser energy real-time feedback (either) |
| Observation system |
CCD visual image |
| Electricity demand |
380V±10%/50HZ |
| Rated power |
≤6KW |
≤8KW |
≤12KW |
≤18KW |
≤22KW |
| Cooling mode |
water-cooling |
| Main engine dimensions |
1200mm*700mm*1030mm or 1350mm*650mm*1100mm |
Application Fields:
Sample Display(Parts Sample)
