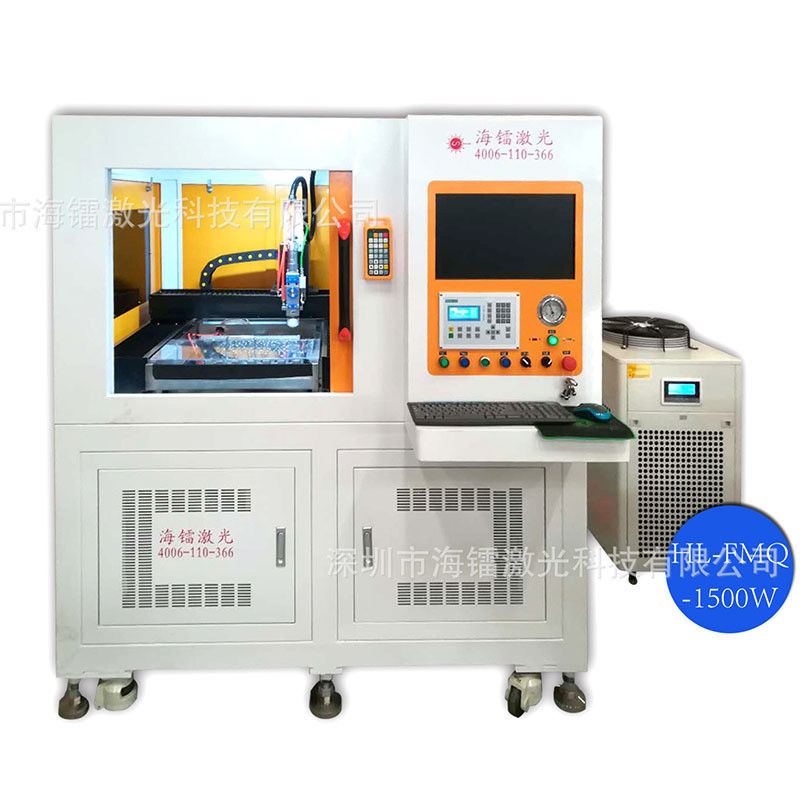

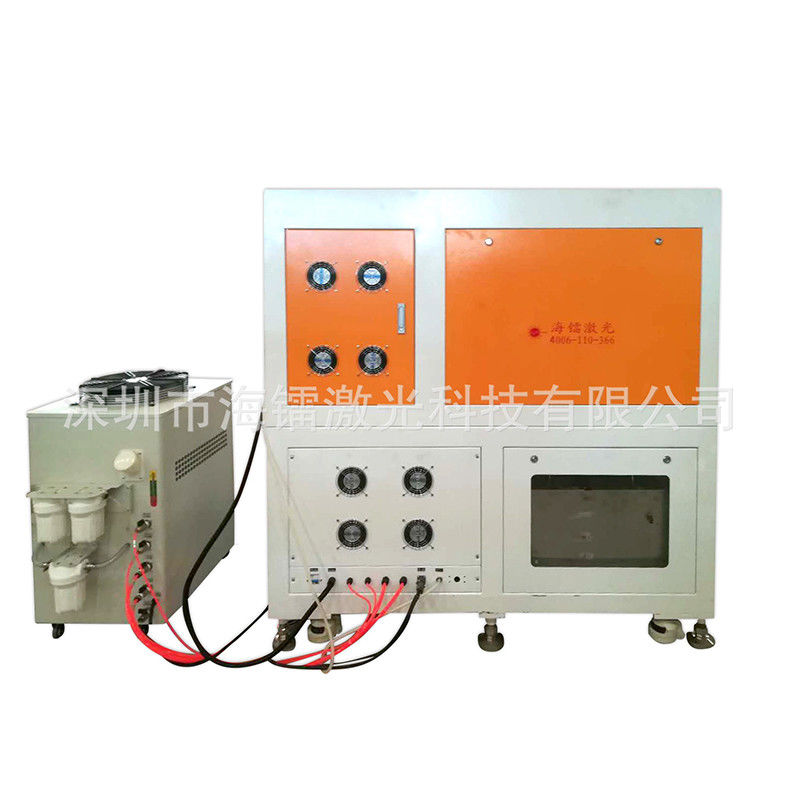

High Precision Fiber Laser Cutting Machine Suitable For All Kinds Of Stainless Steels
Fiber Laser Cutting Machine
Fiber laser cutting machine is the use of fiber laser output high energy density laser beam, and focus on the working surface, so that the cutting of the working part of the instant melting and vaporization, through the computer control CNC machine mechanical system to achieve automatic cutting, is a concentrated beam, numerical control technology, precision machinery technology as one of the high-tech equipment.
Product Features:
Fiber laser cutting machine is the use of high precision linear motor working platform, high precision, fast speed; The whole processing process computer software automatic control, software interface real-time feedback, timely understanding of the processing state, non-contact processing program, no mechanical stress deformation, simple operation, small cutting gap, high efficiency, smooth appearance, no burr, cutting speed, safe operation, stable performance, high cutting precision.
• Utility model patent integrated design, can be equipped with different types or manufacturers of laser light sources;
• Compact, safe, practical and reasonable;

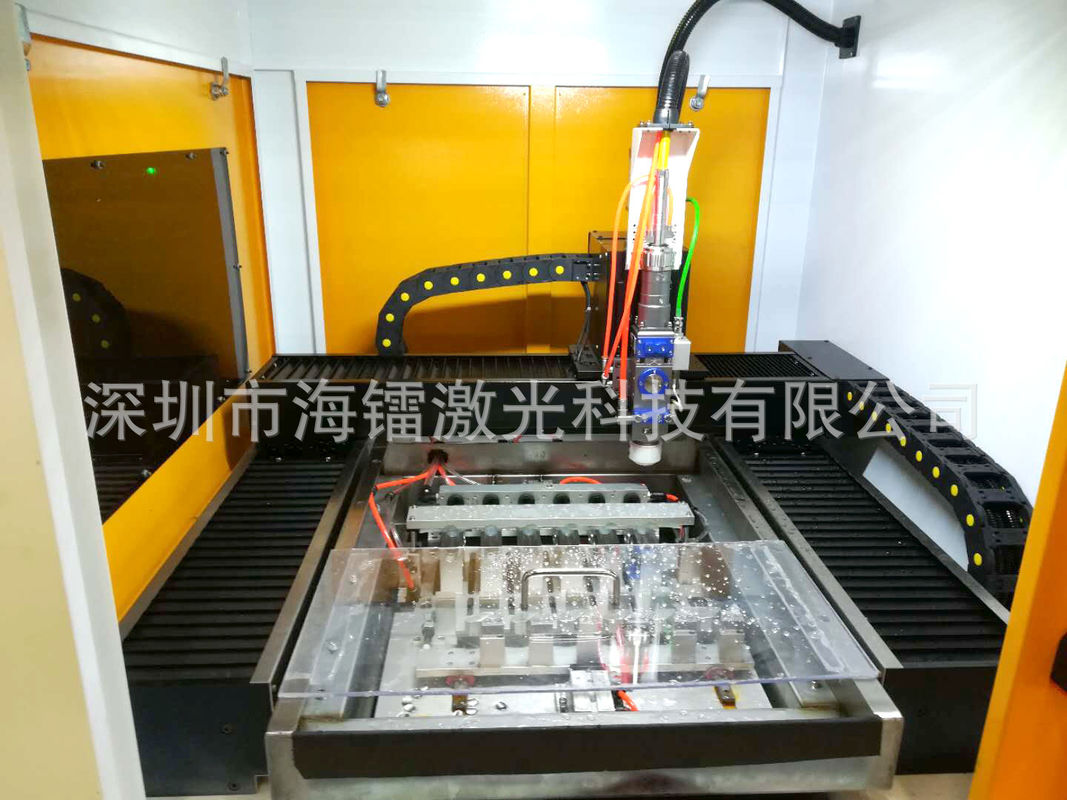

• Using optical marble platform, shock-proof frame design, suitable for high-speed movement, high stability;
• High precision, full feedback linear motor working platform, fast speed;
• Optional large format high-precision visual positioning, automatic precision correction;
• Multi-functional integrated control, automatic control of processing software, real-time feedback of software interface;
• Display each function and each part of the processing state, non-contact processing mode, no mechanical stress deformation.
Technical parameter
| Equipment Model |
HL-FM-1500W |
| Laser Power(W) |
1000W/1500W/2000W |
| Laser Wavelength(nm) |
1070nm |
| Laser Frequency(Hz) |
0-50KHZ |
| Cutting Speed |
depend on material thickness |
| Effective Cutting Area |
1000mm*1000mm /600*600mm |
| Cut Steel Sheet max Thickness |
≤3mm / 4mm /5mm |
| minimum line width |
0.15mm |
| Cutting Accuracy |
±0.01mm |
| Positional Accuracy |
±0.005mm |
| Repeated Positioning Accuracy |
±0.002mm |
| Cooling Method |
water cooling |
| Environment Temperature |
10℃-40℃ |
| Environment Humidity |
20%-70%RH Without Condensation |
| Electric Power Consumption |
≤10KW /12kw/16kw |
Application Fields:
Suitable for all kinds of stainless steel, iron plate, aluminum plate, and other metal plate cutting and cutting metal round pipe, square pipe cutting hole, widely used in sheet metal, hardware products, steel structure, precision machinery, auto parts, jewelry, advertising, crafts, toys, packaging and other industries,ect.

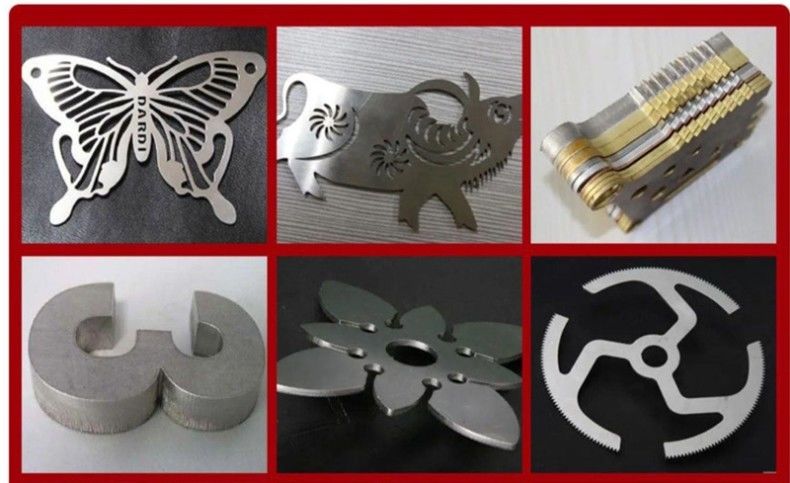

Sample Display(Parts Sample)
Profession and Honor
About this product,we also support customized services,If you would like to know further product information and requirements, please contact us online or send E-mail to us.Thank you for your time!
