YAG Laser Welding Machine High Efficiency For Welding Metal And Alloy Materials

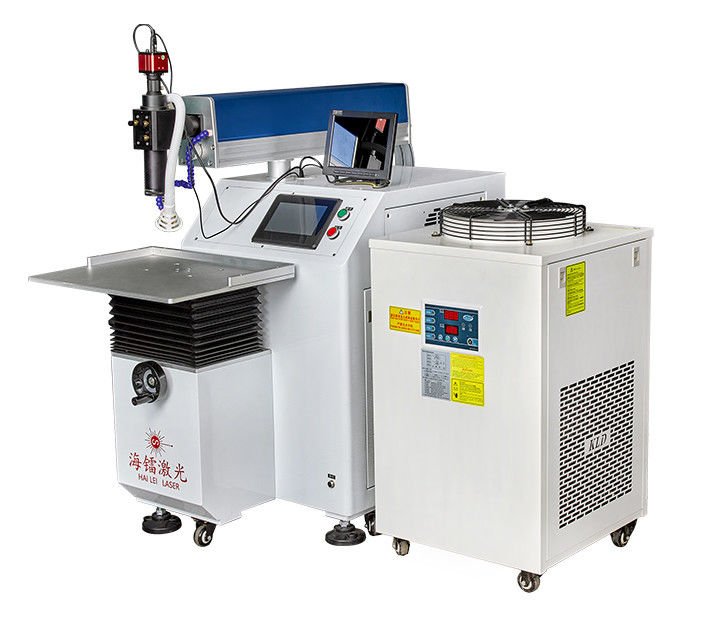

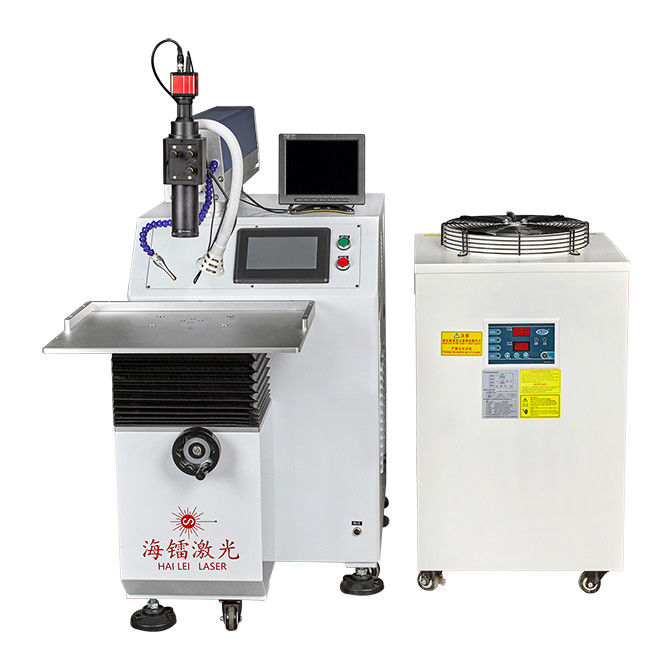

Universal Automatic Laser Welding Machine is a laser welding machine developed by introducing German welding machine technology. It has high welding efficiency, good welding effects, and simple and convenient operation. It mainly uses computer programming to complete automatic or semi-automatic spot welding, butt welding, stack welding, and sealing welding, and can complete complex plane straight lines, circular arcs, and arbitrary trajectory welding.
The laser welding machine can use a welding frequency of 50-100 Hz, with a line speed of up to 18 mm/s, greatly improving welding efficiency and weld quality. It can be equipped with a four-axis ball screw worktable and an imported servo control system, which includes a rotating worktable, allowing it to weld cylindrical objects and other variously shaped objects. Its application range is wide, precision is high, and speed is fast. The current waveform can be adjusted arbitrarily.
Product parameter
| Model number | HL-YZ-200W | HL-YZ-400W |
| Maximum number of laser powers | 200W | 400W |
| Light Wave length (NM) | 1064 | 1064 |
| Pulse energy | 90J | 150J |
| Laser Welding Frequency (HZ) | 1-50,1-100 | 1-50,1-100 |
| Laser welding depth (mm) | 0.1-2.5 | 0.1-3.5 |
| Pulse width (ms) | 0.5-20 | 0.5-20 |
| Spot size (mm) | Φ0.2-2 | Φ0.2-2 |
| Power requirements | 9kw single-phase power 220VAC, 50HZ 35A above | 12kw three-phase power 380VAC, 50HZ 40A |
| Rated power | 4KW | 6.5KW |
| Control system | PLC/PC | PLC/PC |
| Positioning system | Red light indication/CCD | Red light indication/CCD |
| Special requirements | customizable | customizable |
| Standard table stroke | 300*200*200 or customizable | 300*200*200 or customizable |
Application field
It is mainly used for laser welding of carbon steel, common alloy steel, stainless steel, welding of different steels, such as welding of stainless steel to low-carbon steel, welding of 416 stainless steel to 310 stainless steel, welding of 347 stainless steel to HASTALLY nickel alloy, welding of nickel electrode to cold forged steel, welding of different nickel content double metal strips, welding of titanium, nickel, tin, copper, aluminum, chromium, niobium, gold, and silver and other metals and their alloys, as well as welding of the same material of steel and Kovar alloy.
