Name: High Quality YAG Laser Welding Machine Stainless Steel Mutiple Aoolication
Brand: Shenzhen Hailei Laser Technology Co., Ltd.
SKU: HL-YZ-200W/400W
Availability: InStock

Home > Products > YAG Laser Welding Machine >

High Quality YAG Laser Welding Machine Stainless Steel Mutiple Aoolication

Place of Origin:

China

Brand Name:

HaiLei Laser

Model Number:

HL-YZ-200W/400W

Request A Quote

High Quality YAG Laser Welding Machine Stainless Steel Mutiple Aoolication

Product Details

Cooling Method:

Forced Air Cooling

Power Input:

AC220V±10%，50/60Hz

Fiber Length:

5M, 10M, 15M(optional)

Power Stability:

<2% RMS

Lasertype:

Quasi-Continuous Wave (QCW) Fiber Laser

Applications:

Welding, Cutting, Marking, Medical

Laser Mode:

Multimode

Fibercorediameter:

50 µm To 100 µm

Powerstability:

±1%

Beam Quality:

M2<1.3

Polarization Ratio:

>100:1

Working Temperature:

0~35ºC

Dimensions:

600 Mm X 400 Mm X 150 Mm

Visual System:

CCD Visual System

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiable

Packaging Details

Packed with strong wooden cases

Delivery Time

15 working days

Supply Ability

1500 units per month

220V 380V YAG Laser Welding Machine 200W 1064nm Metal Laser Welder

Get Best Price

Video

1064nm YAG Welding Machine 50HZ 100HZ Alloy Metal Laser Welding Machine

Get Best Price

Video

200W And 400W YAG Laser Welding Machine 2 Axis YAG Laser Welder Automatic

Get Best Price

Contact Now

Product Description

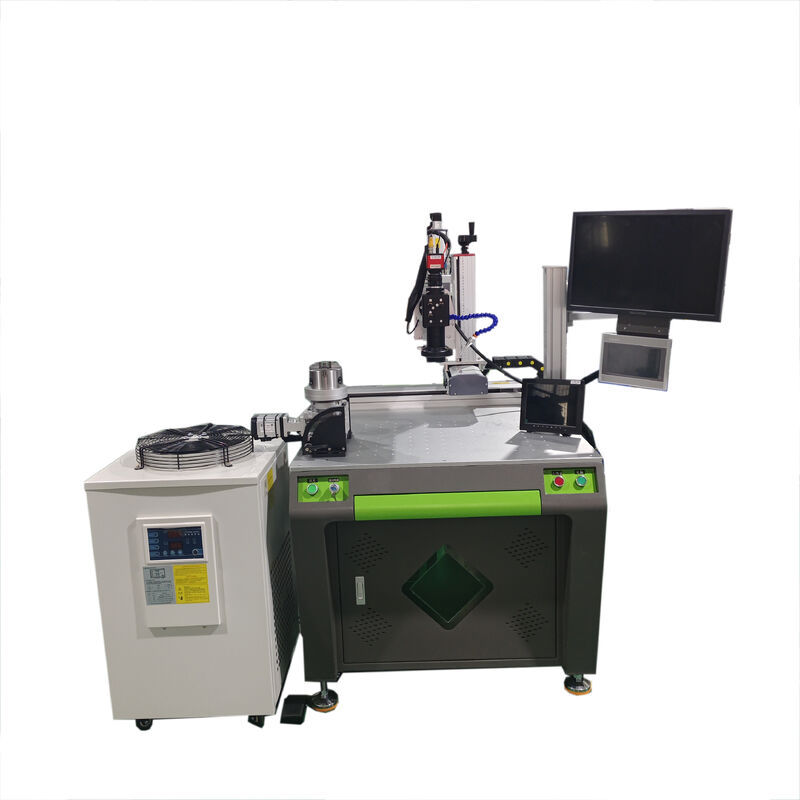

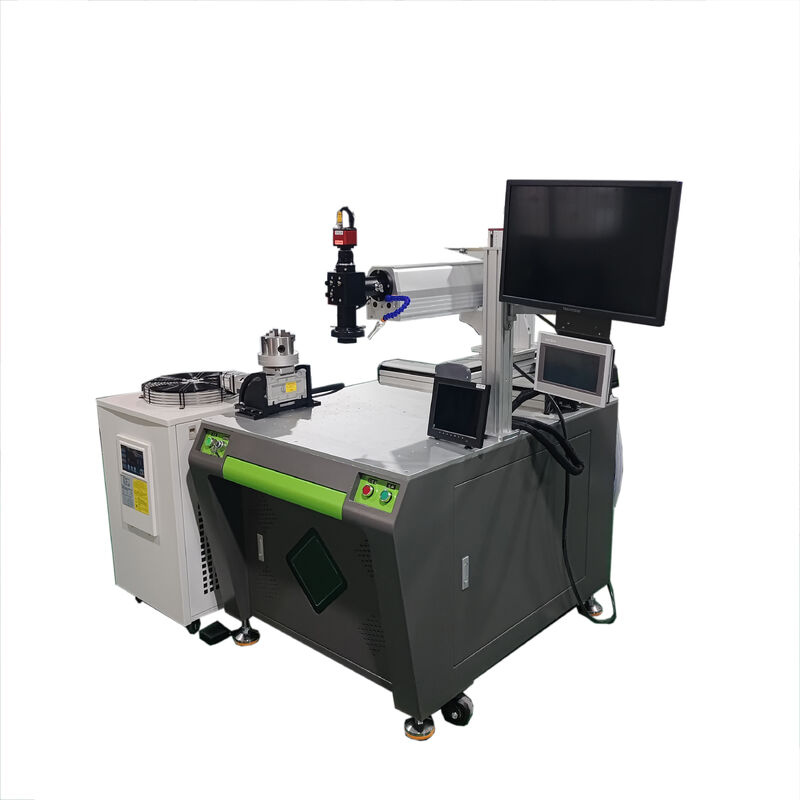

High Quality YAG Laser Welding Machine for Stainless Steel Multiple Applications

1064NM YAG Laser Automatic Welding Machine 220V/380V YAG Laser Welding Machine

Key Features

High Precision: Small focal spot allows for micron-level positioning and welding
Dissimilar Metal Joining: Effectively handles materials with high reflectivity or different melting points (e.g., Aluminum, Copper, Stainless Steel)
Non-contact Processing: No mechanical stress is applied, preventing deformation of delicate parts
High Controllability: Can be integrated with fiber optics and robotic arms for automated production lines

Applications

Electronics and Electrical Engineering
Medical Device Industry
Automotive Industry
Jewelry and Watchmaking

Product Specifications

Model number	HL-YZ-200W	HL-YZ-400W
Maximum number of laser powers	200W	400W
Light Wave length (NM)	1064	1064
Pulse energy	90J	150J
Laser Welding Frequency (HZ)	1-50,1-100	1-50,1-100
Laser welding depth (mm)	0.1-2.5	0.1-3.5
Pulse width (ms)	0.5-20	0.5-20
Spot size (mm)	Φ0.2-2	Φ0.2-2
Power requirements	9kw single-phase power 220VAC, 50HZ 35A above	12kw three-phase power 380VAC, 50HZ 40A
Rated power	4KW	6.5KW
Control system	PLC/PC	PLC/PC
Positioning system	Red light indication/CCD	Red light indication/CCD
Special requirements	customizable	customizable
Standard table stroke	300200200 or customizable	300200200 or customizable

Professional Certifications and Honors

Please note: All photos on this site are real. Due to changes in lighting, and display resolution, the image you see may have some degree of chromatic aberration. HailLei Laser is a professional laser equipment manufacturer with 18 years of history. Our products and equipment are updated and upgraded every year.

If you are interested in this product and want to know more details, please contact us online or email us. We will have professional engineers to serve you. Thank you for your time.
