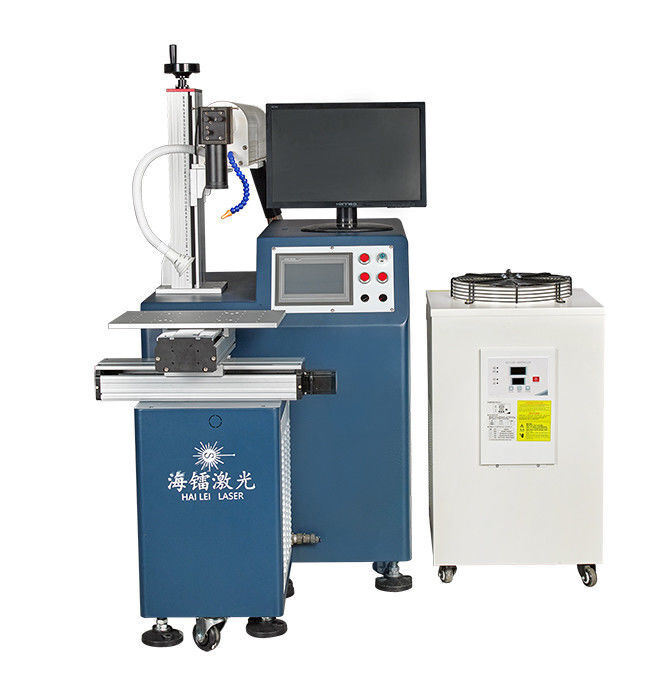

HL-YAG-200W/400W Dual-Use Ready 1064nm Pulse Laser Welding Machine With 2-Axis Table, 90J/150J Pulse Energy

Overview

The HL-YAG-200W/400W is a 1064 nm pulsed YAG laser welding machine mounted on a 2-axis CNC worktable. It performs spot welding, butt welding, stack welding and seam sealing on carbon steel, alloy steel, stainless steel and dissimilar steel joints, with pulse energy of 90 J (200 W) or 150 J (400 W), a 0.3–1.2 mm spot and welding depth from 0.1 mm to 3.5 mm.

Programming is done offline: the controller drives straight lines, arcs and free trajectories, so a single fixture covers a family of parts. Line speed reaches 18 mm/s and welding frequency is adjustable across 1–50 Hz or 1–100 Hz, with arbitrary current waveform shaping for heat-sensitive joints.

Dual-Use Item Status & Export Documentation

This model is routinely supplied under dual-use item classification for industrial laser welding equipment. Before dispatch we assemble a complete export dossier so that customs and licensing review is completed in advance, not after the machine is on the dock.

• Commodity classification support: HS code and technical parameter sheet prepared for dual-use review.
• End-user documentation: end-user statement and end-use declaration templates issued with the proforma invoice.
• Non- end-use declaration: signed statement confirming civilian application supplied on request.
• Bilingual data package: English and Chinese technical files for customs and licensing authorities.
• Shipment readiness: units are assembled to order and released for shipment once destination and end use are confirmed.

Tell us the destination country and the intended application at the quotation stage and we will state clearly which documents are required for that market.

Technical Parameters

Typical Applications

• Mold and die repair, including edge build-up on tool steel.
• Stainless steel and alloy steel sealing welds on instrument housings.
• Sensor, connector and small hardware joining where heat input must stay local.

Packing, Delivery & Service

• Packing: strong export wooden case with moisture barrier and shock mounts.
• Lead time: 5–8 working days for standard configurations after export documents are confirmed.
• Supply ability: 1,500 units per month across the welding range.
• Service: remote commissioning support, bilingual operating manual, 12-month warranty on the laser source.

Request a Quotation

Send us your material, joint type and annual volume and we will confirm the configuration, export documents and shipping schedule the same working day.
