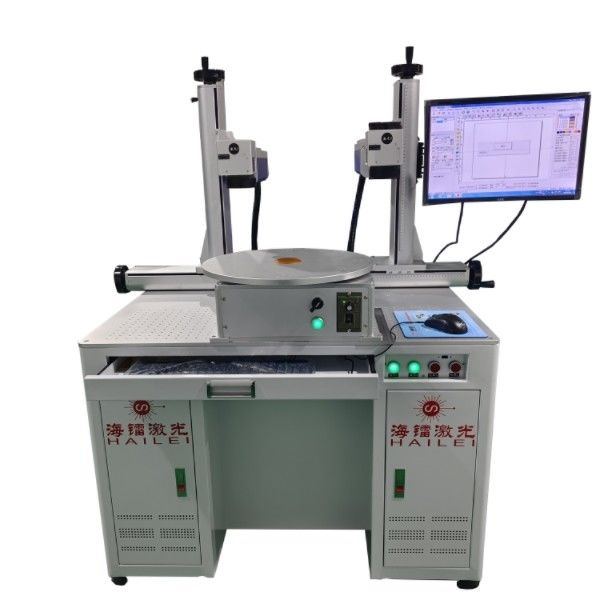

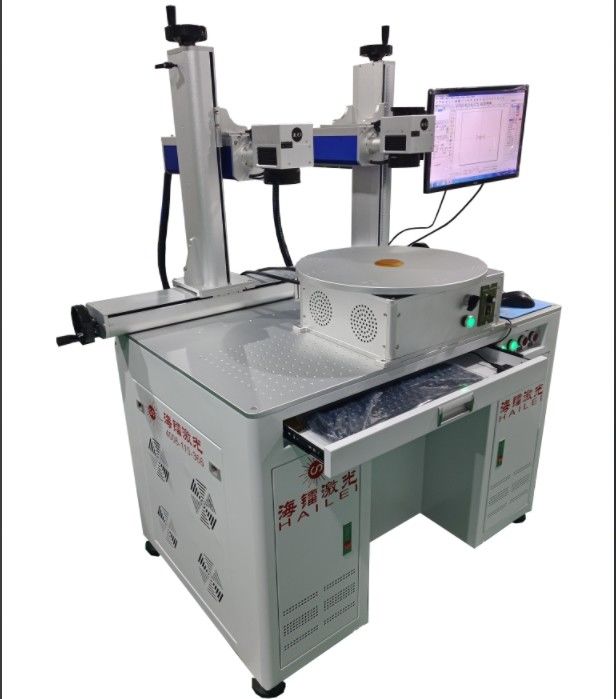

8 Station Double Head Optical Fiber Marking Machine Automatical Marking Machine100W
Characteristics of double head optical fiber marking machine:
The fiber laser marking machine adopts an integrated overall structure, featuring no optical pollution, no power coupling loss, and air cooling. It possesses performances such as high efficiency, long lifespan, and low maintenance requirements that other lasers do not have. The fiber laser marking machine has numerous distinctive advantages in application. Unlike traditional solid-state lasers that utilize crystal rods as the laser medium, fiber lasers employ a very long ytterbium-doped double-clad optical fiber as the medium and are pumped by high-power multi-mode laser diodes.
Product advantages:
1. The efficiency of fiber laser marking machine is very high and it is very energy-saving.Double head laser welding, double efficiency.
2. The marking speed of fiber laser is fast and the mark can be formed in one go.
3. The service life of the equipment is long and it can work continuously for 24 hours.
4. Fiber laser marking machine is mainly used in fields where the requirements for depth, smoothness, and fineness are high.
5. Fiber laser marking can produce various words, symbols, and patterns, and the marking made by fiber laser is permanent.
6. CCD vision system and pipeline operating platform can automatically position marking, making marking more accurate and more efficient.
Technical parameter:
| Equipment model: |
HL-FM-20w/30w/50w/100w |
| Laser power: |
20W 30W 50W 100W |
| Output wavelength: |
1064nm |
| Laser Q-switching frequency: |
1-1000KHz |
| Standard engraving range: |
180*180mm |
| Optional engraving range |
70*70mm,100*100mm,150*150mm |
| Minimum line width: |
0.03mm |
| Minimum character: |
English:0.15*0.15MM |
| Repetition accuracy: |
±0.005mm |
| Engraving speed: |
≤7000mm/s |
| Engraving depth: |
≤1.5MM |
| Electricity demand: |
AC220V±10%,50Hz,5Amp |
| Machine power: |
≤0.6KW |
| Cooling method: |
Air cooling |
| Working environment requirements: |
1-35℃,5%-80% noncondensing |
Application Fields:
1, ink and paint: mobile phone battery labels, panels, mobile phone keys, small daily necessities and other fiber laser marking.
2, ceramic, EP material laser marking: electronic component packaging, IC and other fiber marking.
3, plastic products: electrical shell, electronic products and other product serial number, LOGO and other fiber laser marking.
4, metal and surface: stainless steel, copper, aluminum and oxidation, phosphating, electroplating, often used in hardware, daily necessities, electrical housing, mobile phone housing and other laser marking.
5, keyboard and keys: keyboard, keys and other fine fiber laser marking.

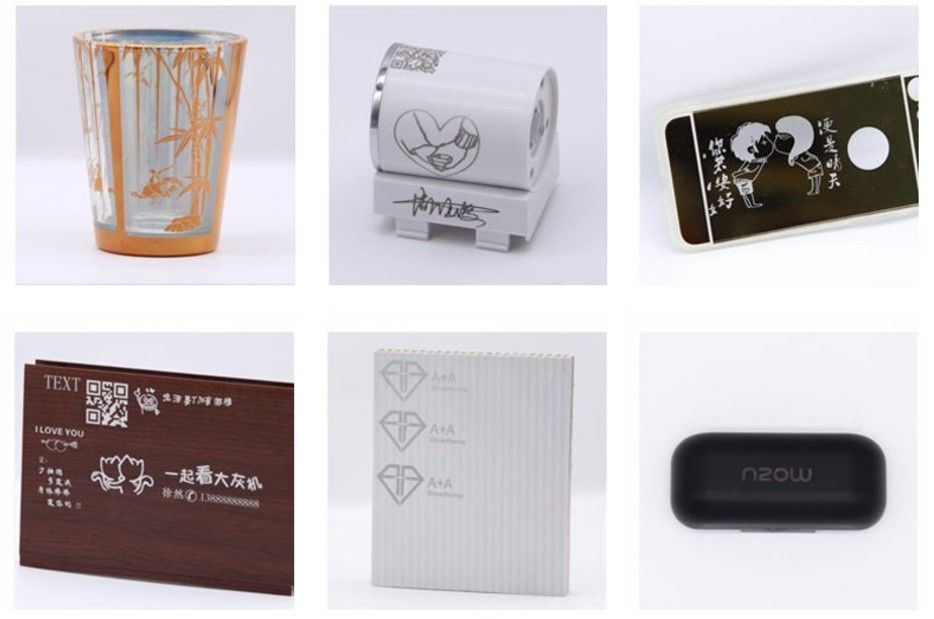

Sample Display(Parts)
Profession and Honor
About this product,we also support customized services,If you would like to know further product information and requirements, please contact us online or send E-mail to us.Thank you for your time!
