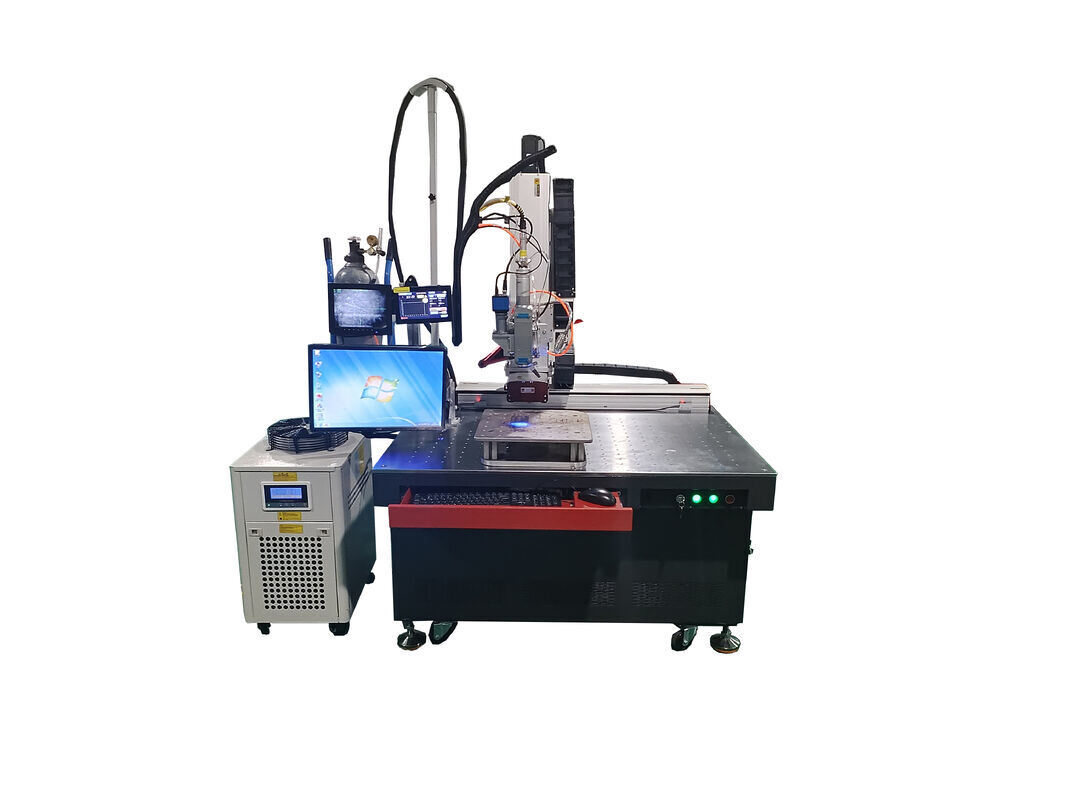

HL-QCW-500W Dual-Use Ready 5-Axis QCW Pulse Laser Welding Machine, 1070nm, CCD Vision, High Reflectivity Copper Seams

Overview

QCW combines the peak power of a pulsed laser with the beam quality of a fiber laser: the HL-QCW-500W delivers controlled pulse energy at 1070 nm through a 5-axis motion platform with CCD visual alignment. The result is a flat, spatter-free weld bead on copper, nickel, tin, gold, silver, aluminium and dissimilar metal pairs — joints where conventional YAG spot welding leaves porosity and a rough surface.

Electrical-to-optical efficiency reaches 40%, and average power draw is roughly one tenth of an equivalent lamp-pumped machine. The laser head is compact and air-cooled, so it integrates into automated cells without a large chiller footprint.

Dual-Use Item Status & Export Documentation

This model is routinely supplied under dual-use item classification for industrial laser welding equipment. Before dispatch we assemble a complete export dossier so that customs and licensing review is completed in advance, not after the machine is on the dock.

• Commodity classification support: HS code and technical parameter sheet prepared for dual-use review.
• End-user documentation: end-user statement and end-use declaration templates issued with the proforma invoice.
• Non- end-use declaration: signed statement confirming civilian application supplied on request.
• Bilingual data package: English and Chinese technical files for customs and licensing authorities.
• Shipment readiness: units are assembled to order and released for shipment once destination and end use are confirmed.

Tell us the destination country and the intended application at the quotation stage and we will state clearly which documents are required for that market.

Technical Parameters

Typical Applications

• Copper busbar, nickel tab and tin-plated connector welding in battery packs.
• Precision instrument and sensor housings with heat-sensitive internals.
• Medical device and 3C component seams requiring a smooth, pore-free bead.

Packing, Delivery & Service

• Packing: strong export wooden case with moisture barrier and shock mounts.
• Lead time: 5–8 working days for standard configurations after export documents are confirmed.
• Supply ability: 1,500 units per month across the welding range.
• Service: remote commissioning support, bilingual operating manual, 12-month warranty on the laser source.

Request a Quotation

Send the material stack-up and the seam length; we will confirm pulse shaping, axis configuration and the export documents required for your market.
