Name: UPGRADE COLD PLATE MANUFACTURING WITH A QCW LASER WELDING MACHINE
Brand: Shenzhen Hailei Laser Technology Co., Ltd.
SKU: HL-QZ-Series
Price: Negotiable USD
Availability: InStock

Home > Products > QCW Fiber Laser >

UPGRADE COLD PLATE MANUFACTURING WITH A QCW LASER WELDING MACHINE

QCW laser welding machine

cold plate laser welding

QCW fiber laser welding

Place of Origin:

SHENZHEN,CHINA

Brand Name:

HaiLei Laser

Certification:

ISO,CE

Model Number:

HL-QZ-Series

Request A Quote

UPGRADE COLD PLATE MANUFACTURING WITH A QCW LASER WELDING MACHINE

Product Details

Minimum Spot Size:

0.2 MM

Size:

850W*700L*625H（mm）

Mode:

Multimode

Cooling System:

Water Cooling

Polarization Ratio:

>100:1

Pulse Stability:

<2% RMS

Power Input:

AC220V±10%，50/60Hz

Refrigeration Mode:

Water Cooling

Power Instability:

2% Or Less

Fibercorediameter:

50 µm

Power Regulation Range:

5-95%

Repetitionrate:

1 Hz To 100 KHz

Spot Roundness:

90%

The Power Supply:

AC 220V±10%, 50/60HZ

Maximum Pulse Energy:

15J

Highlight:

QCW laser welding machine

cold plate laser welding

QCW fiber laser welding

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiable

Packaging Details

Packed with strong wooden cases

Delivery Time

5-8 working days

Payment Terms

L/C,D/A,D/P,T/T

Supply Ability

80units per month

QCW Laser Welding Technology | Redefining Precision Welding for Modern Industries

Get Best Price

Powerful QCW Laser Welding System | Maximum Welding Performance with Minimum Heat Damage

Get Best Price

500W 5 Axis QCW Laser Welding Machine with CCD Automatical Welding Equipment

Get Best Price

QCW Laser Welding for Liquid Cooling Plates | Deep Penetration & Low Deformation Welding Technology

Get Best Price

Contact Now

Product Description

UPGRADE COLD PLATE MANUFACTURING WITH A QCW LASER WELDING MACHINE

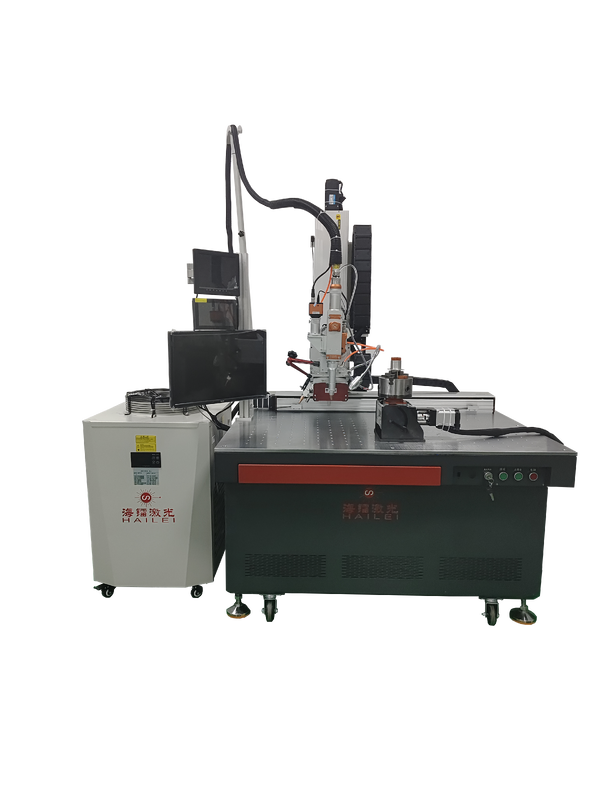

500W 5 Axis QCW Laser Welding Machine with CCD Automatical Welding Equipment

Characteristics of QCW Laser Welding Machine

QCW laser welding machine is a device that combines the advantages of pulsed lasers and continuous lasers. The QCW laser welding machine achieves the best welding results by using pulse control, retaining the high peak power and laser energy of pulsed lasers while maintaining the excellent beam quality of fiber lasers.

Product Advantages

High precision: QCW laser welding machine can achieve fine welding, suitable for welding precision parts and thin-walled materials. The weld point appearance is flat and the quality is better than traditional YAG spot welding technology.
High efficiency: The electric-to-light conversion efficiency of QCW laser welding machine is up to 40%, the average energy consumption is about 1/10 of the conventional welding machine, and long-term use can save users a lot of energy expenditure.
Low maintenance: The equipment has high reliability and almost no maintenance is required. It uses air cooling and has a compact structure, occupying less space, making it easy to layout production lines or integrate with automation.
Wide application fields: QCW laser welding machine has extensive applications in the 3C electronics, power battery, precision instruments and medical equipment industries, suitable for welding and fine cutting of various precision components.

Technical Parameters

Equipment type	HL-QCW-500W	HL-QCW-1000W
Laser	Continuous fiber laser	Continuous fiber laser
Laser wavelength	1070NM±5NM	1070NM±5NM
Laser mode	multimode	multimode
Working mode	continuous	continuous
Average output power	500W	1000W
Average power consumed	2000W	4000W
Power regulation range	5-95%	5-95%
Power instability	2% or less	2% or less
Transmission fiber core diameter	50UM	50UM
Minimum spot	The 0.2 MM	The 0.2 MM
Fiber length	5M, 10M, 15M(optional)	5M, 10M, 15M(optional)
Cooling mode	water-cooling	water-cooling
Cooling water temperature	20 to 25 ℃	20 to 25 ℃
Power source	AC 220V±10%, 50/60HZ	AC 220V±10%, 50/60HZ
Operating ambient temperature	10 ~ 35 ℃	10 ~ 35 ℃
Working ambient humidity	95% or less	95% or less

Application Fields

3C electronics industry: used for spot welding of mobile phone charging line connectors, electronic component tape, and fine cutting of ceramic circuit boards.
Power battery industry: used for spot welding of lithium battery electrode caps and ear plates, ensuring the fineness and reliability of the welding points.
Precision instruments and medical equipment: used for welding of precision medical accessories, ensuring welding is firm and does not turn black, meeting high requirements for welding quality.

Sample Display (Parts)

Professional Experience and Honors

Please note: All photos on this site are real. Due to changes in lighting and display resolution, the image you see may have some degree of chromatic aberration. HailLei Laser is a professional laser equipment manufacturer with 18 years of history. Our products and equipment are updated and upgraded every year.

If you are interested in this product and want to know more details, please contact us online or email us. We will have professional engineers to serve you. Thank you for your time.
