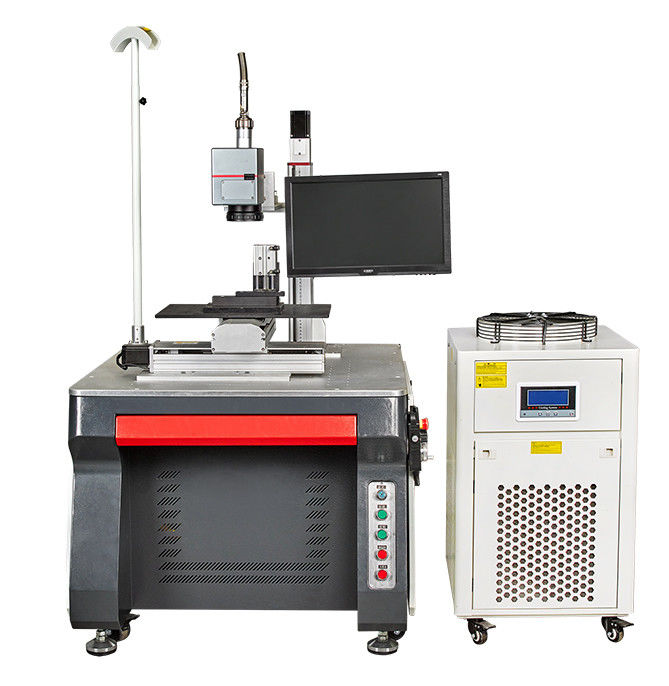

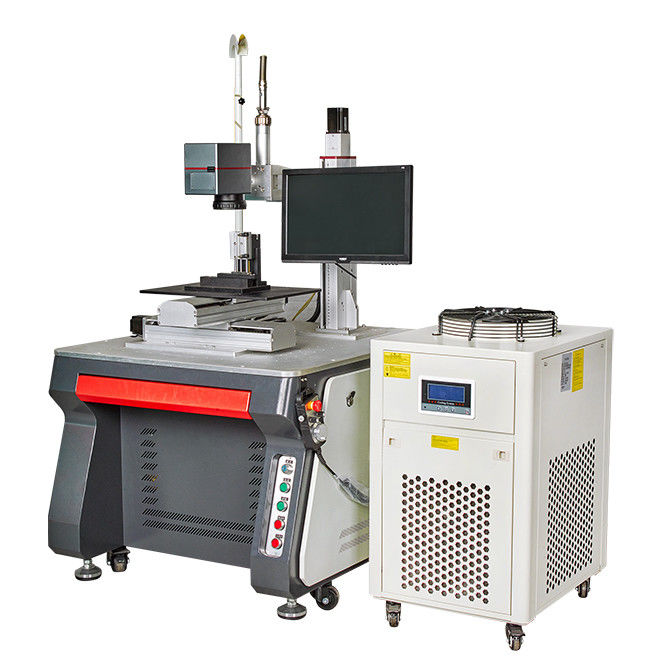

QCW Laser Continuous Welding Machine Laser Spot Welding Machine For Welding Gold Silver And Alloy Materials
Characteristics of Optical fiber continuous Laser Marking Machine:
Optical fiber continuous laser welding machine is composed of "welding host" and "welding table" supporting, this series of equipment has a number of workbench options, is more than 5 times the speed of traditional optical fiber transmission laser welding machine, fully meet the needs of users in different industries.
Product Features:
1, the laser beam
The laser beam quality is good, the welding speed is fast, the weld is firm and beautiful
2, welding depth and width
Welding depth to width ratio up to 10:1, the welding joint is smooth and beautiful, the weld is smooth and without pores, and there is no need for treatment or simple treatment after welding, reducing the labor intensity of workers
3, high electro-optic conversion rate
High electro-optic conversion rate, low energy consumption, long-term use can save a lot of processing costs for users
4, high equipment reliability
The equipment has high reliability, 24 hours continuous and stable processing, and meets the needs of industrial mass production and processing
5. Strong customization ability of special aircraft
Special aircraft customization ability is strong, can be tailored to customer demand exclusive models
Technical parameter
| Equipment type |
HL-FW-500W |
HL-FW-1000W |
| laser |
Continuous fiber laser |
Continuous fiber laser |
| Laser wavelength |
1070NM±5NM |
1070NM±5NM |
| Laser mode |
multimode |
multimode |
| Working mode |
continuous |
continuous |
| Average output power |
500W |
1000W |
| Average power consumed |
2000W |
4000W |
| Power regulation range |
5-95% |
5-95% |
| Power instability |
2% or less |
2% or less |
| Transmission fiber core diameter |
50UM |
50UM |
| Minimum spot |
The 0.2 MM |
The 0.2 MM |
| Fiber length |
5M, 10M, 15M(optional) |
5M, 10M, 15M(optional) |
| Cooling mode |
water-cooling |
water-cooling |
| Cooling water temperature |
20 to 25 ℃ |
20 to 25 ℃ |
| Power source |
AC 220V±10%, 50/60HZ |
AC 220V±10%, 50/60HZ |
| Operating ambient temperature |
10 ~ 35 ℃ |
10 ~ 35 ℃ |
| Working ambient humidity |
95% or less |
95% or less |
Application Fields:
Fiber continuous laser welding machine is suitable for welding gold, silver, titanium, nickel, tin, copper, aluminum and other metals and alloy materials, can achieve the same metal and dissimilar metals between the precision welding, has been widely used in aerospace equipment, shipbuilding, instrumentation, mechanical and electrical products, automobile manufacturing and other industries.

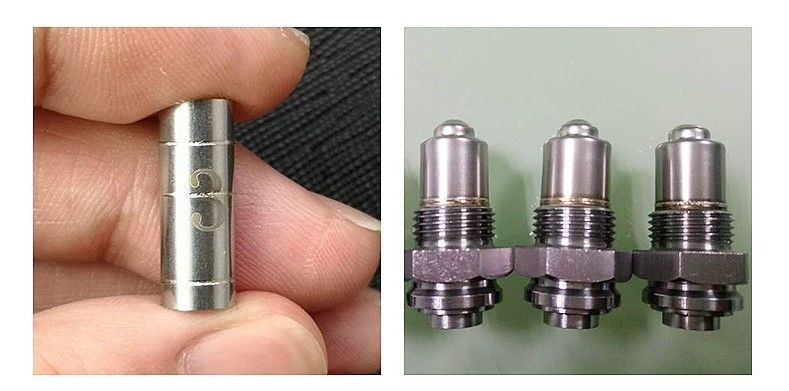

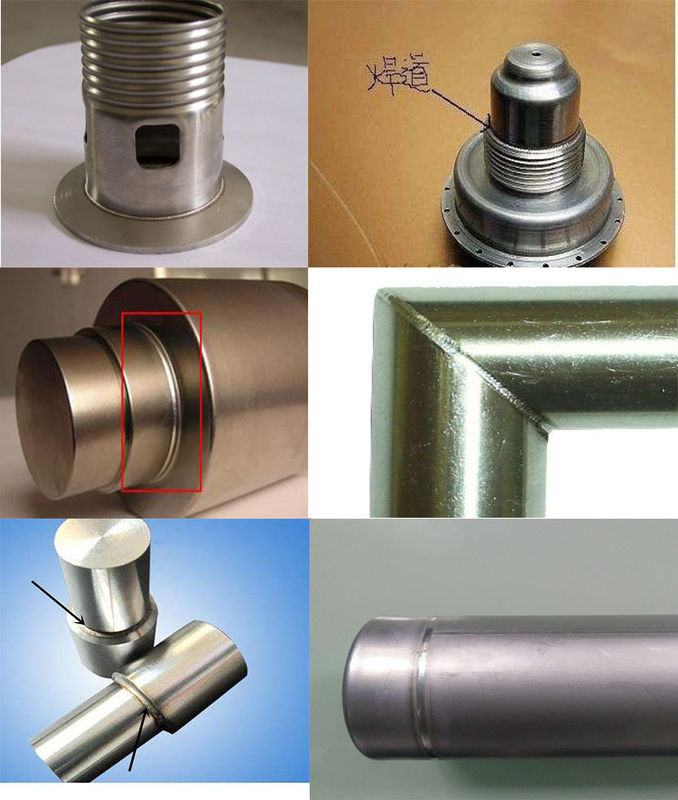

Sample Display(Parts)
Profession and Honor
About this product,we also support customized services,If you would like to know further product information and requirements, please contact us online or send E-mail to us.Thank you for your time!
