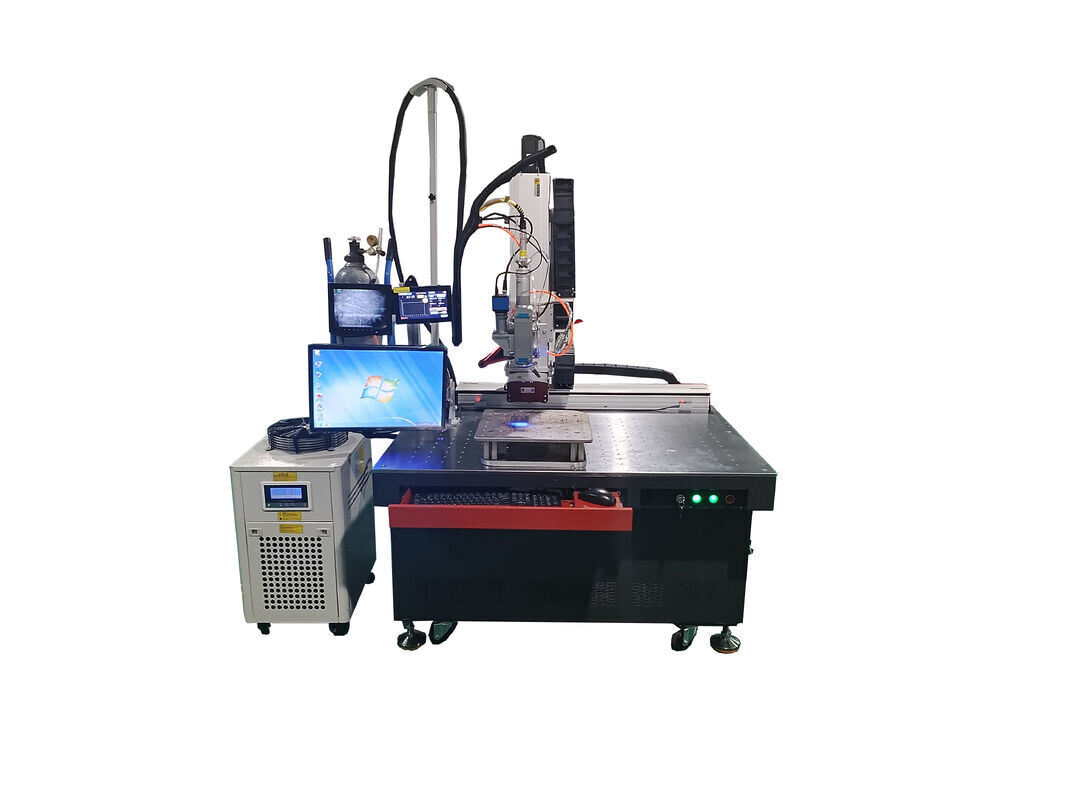

QCW Fiber Laser Galvo Welding System 500W Robust Seam Micro Joining Low Heat Affected Zone 1070nm

QCW Fiber Laser Galvo Welding System — 500W Robust Seam Platform for Production Welding

The HL-QCW-500G is a 500 W QCW fiber laser galvo welding system built for the step between laboratory micro-welding and full automation: a seam-producing machine that keeps the precision and low heat-affected zone of a galvo platform while generating robust, load-bearing weld seams at production speed. It is the answer for parts that need continuous or stitch seams on thin walls — cold plates, battery enclosures, bellows, sensor housings — where a TIG or continuous-wave laser would over-heat or spatter the part.

The Engineering Case for QCW plus Galvo

A continuous-wave laser pours heat into the part for as long as the beam is switched on. QCW delivers that same average power in shaped pulses with high peak energy and controlled off-time, so the pool freezes between pulses and heat has no chance to spread. Steering that beam with a galvo head instead of a moving table removes the inertia that normally limits seam speed on light fixtures.

• Pulsed energy, continuous seam: overlapping pulses with 60–90% spot overlap produce a fully fused, spatter-free seam at up to 12 m/min.
• Low heat-affected zone: HAZ held under 0.15 mm on 0.5 mm stainless, so thin walls keep their geometry and coatings survive.
• Robust joint strength: seam tensile strength 90–100% of annealed base metal, helium leak-tight on sealed enclosures.
• Galvo flexibility: one head can trace straight seams, circles, and stitch patterns from a CAD path — no fixture change for a new part geometry.

Performance Data

Built for Robustness, Inside and Out

• Weld robustness: pulse shaping avoids the keyhole collapse that causes porosity in copper and aluminium, giving a ductile, crack-free fusion zone.
• Mechanical robustness: sealed galvo head, IP54-rated cabinet, industrial chiller and 24/7-rated fiber source designed for three-shift operation.
• Process robustness: closed-loop power monitoring, gas-flow interlock and a recipe lock that prevents unauthorised parameter edits on the shop floor.
• Service robustness: modular laser module and galvo head, both field-replaceable in under 30 minutes, with 12 months warranty and remote diagnostics.

Typical Applications

• Liquid cold plate and heat sink seam sealing in copper and aluminium
• EV battery enclosure and busbar seam welding
• Stainless steel bellows, quick couplers and sensor housings
• Thin-wall tube and manifold joining
• Hermetic sealing of electronic and medical packages
• Kitchenware, hardware and decorative trim seams requiring a grind-free finish

Technical Specification

Scope of Supply

• 500 W QCW fiber laser source and 5 m delivery fiber
• Two-axis galvo scan head with 200 × 200 mm F-theta lens
• Industrial water chiller, shield gas kit and foot switch
• CAD path import software and seam programme commissioning on your samples
• English manual, maintenance schedule and safety documentation

Ordering and Support

Send us two sample assemblies and we return a weld cross-section report, helium leak result and a seam-speed recommendation before you place an order. Optional items include a 3-axis or 5-axis work table, inline CCD seam tracking and a robotic or conveyor interface. Custom voltage and enclosure configurations are available for European and North American installations.

Contact us today with your material, wall thickness and seam length so we can quote the correct configuration and cycle time.
