Name: QCW LASER WELDING FOR LIQUID COOLING MANIFOLDS.HIGH PRECISION. LOW HEAT INPUT. LEAK-FREE PERFORMANCE.
Brand: Shenzhen Hailei Laser Technology Co., Ltd.
SKU: HL-QZJ Series
Availability: InStock

Home > Products > QCW Fiber Laser >

QCW LASER WELDING FOR LIQUID COOLING MANIFOLDS.HIGH PRECISION. LOW HEAT INPUT. LEAK-FREE PERFORMANCE.

Place of Origin:

SHENZHEN,CHINA

Brand Name:

HaiLei Laser

Certification:

ISO

Model Number:

HL-QZJ Series

Request A Quote

QCW LASER WELDING FOR LIQUID COOLING MANIFOLDS.HIGH PRECISION. LOW HEAT INPUT. LEAK-FREE PERFORMANCE.

Product Details

Single Pipe Load:

Up To 150kg

Beam Diameter:

3~7 ,1/e2

Visual System:

CCD Visual System

Cooling System:

Water Cooling

Repetition Frequency:

5-20MHz

Coolingmethod:

Water Cooling

Max Acceleration:

Pulse Stability:

<2% RMS

Weight:

30 Kg

Operatingvoltage:

220 V AC

Overall Size:

439x397x88+200x400x88mm

Working Temperature:

0~35ºC

Mode:

Multimode

Power Instability:

2% Or Less

Controlinterface:

USB / Ethernet

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Price

negotiable

Packaging Details

Packed with strong wooden cases

Delivery Time

5-8 working days

Payment Terms

T/T

Supply Ability

1500 units per month

3-AXIS QCW LASER WELDING MACHINE, USED FOR LIQUID-COOLED COLD PLATE WELDING, CONTINUOUS LASER OUTPUT, RELIABLE QUALITY, ONE-YEAR MAINTENANCE SERVICE.

Get Best Price

Video

Custom Fiber Laser Welding Machine with Seamless Production Line Integration and Advanced Deformation Control for Unmatched Weld Quality

Get Best Price

Video

1500W High Precision Fiber Continuous Laser Welding Machine with Integrated Workstation

Get Best Price

Video

Bespoke Non-Standard Laser Welding Machine with Free Sample Test Service for Custom Solutions

Get Best Price

Contact Now

Product Description

Leak-Free Welding for Every Cooling Manifold

QCW Laser Welding delivers high precision, low heat input, and exceptional sealing performance for next-generation liquid cooling systems.

Challenges of Traditional Welding

Excessive heat input causes deformation.
Difficult to achieve consistent leak-proof sealing.
High spatter requires additional cleaning.
Significant post-processing and polishing.
Electrode wear increases maintenance costs.
Difficult to automate complex manifold welding.
Lower production efficiency and repeatability.

Advantage of QCW Laser Welding

High-quality welding for stainless steel, aluminum and copper liquid cooling manifolds.
Minimal heat affected zone (HAZ), reducing deformation on thin-wall components.
Stable, pore-free welds to ensure excellent sealing performance.
Ideal for complex manifold structures with multiple ports and channels.
Consistent welding quality for mass production.
Reduced post-processing and polishing costs.
High welding speed increases production efficiency.
Supports automated production lines for smart manufacturing.

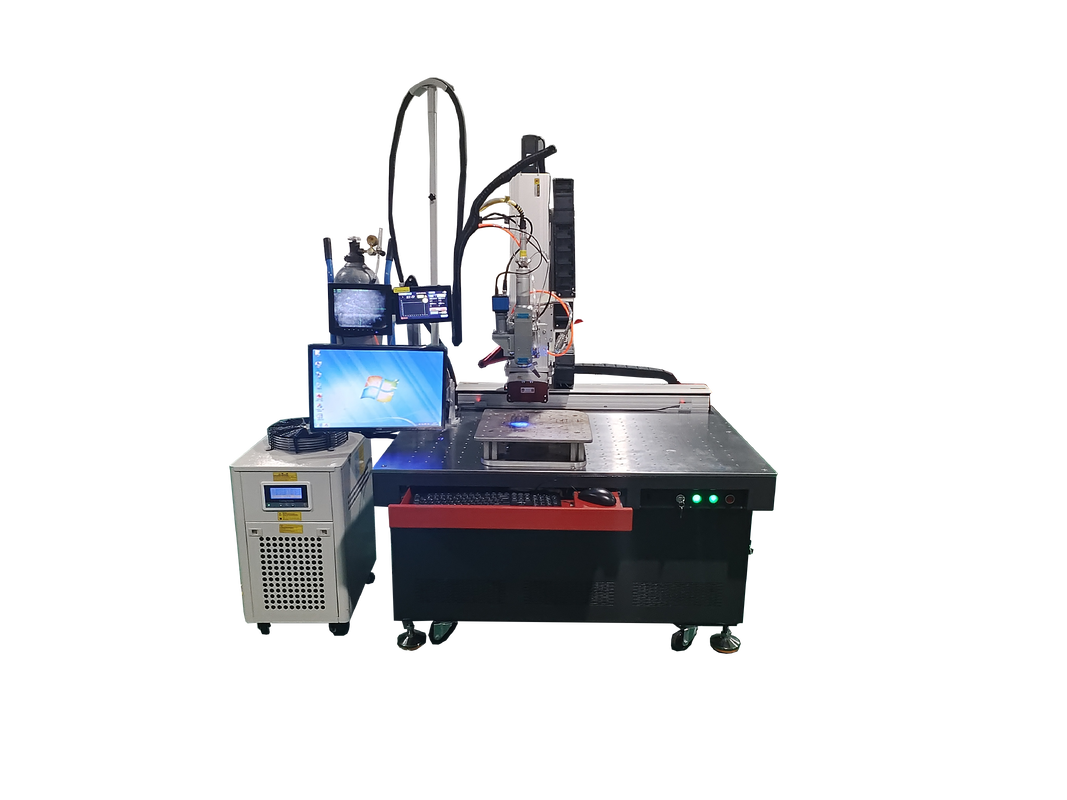

QCW LASER WELDING FOR LIQUID COOLING MANIFOLDS.HIGH PRECISION. LOW HEAT INPUT. LEAK-FREE PERFORMANCE. 0

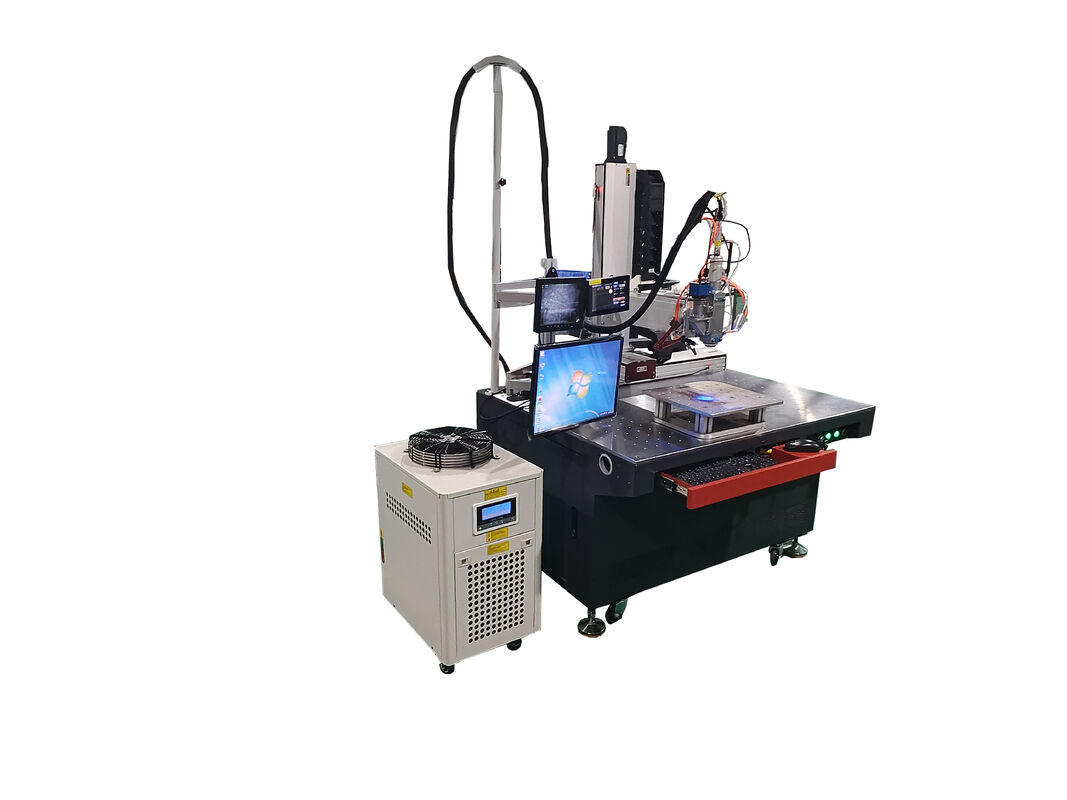

QCW LASER WELDING FOR LIQUID COOLING MANIFOLDS.HIGH PRECISION. LOW HEAT INPUT. LEAK-FREE PERFORMANCE. 2

Technical parameter

Equipment type	HL-FW-500W	HL-FW-1000W
laser	Continuous fiber laser	Continuous fiber laser
Laser wavelength	1070NM±5NM	1070NM±5NM
Laser mode	multimode	multimode
Working mode	continuous	continuous
Average output power	500W	1000W
Average power consumed	2000W	4000W
Power regulation range	5-95%	5-95%
Power instability	2% or less	2% or less
Transmission fiber core diameter	50UM	50UM
Minimum spot	The 0.2 MM	The 0.2 MM
Fiber length	5M, 10M, 15M(optional)	5M, 10M, 15M(optional)
Cooling mode	water-cooling	water-cooling
Cooling water temperature	20 to 25 ℃	20 to 25 ℃
Power source	AC 220V±10%, 50/60HZ	AC 220V±10%, 50/60HZ
Operating ambient temperature	10 ~ 35 ℃	10 ~ 35 ℃
Working ambient humidity	95% or less	95% or less

Profession and Honor

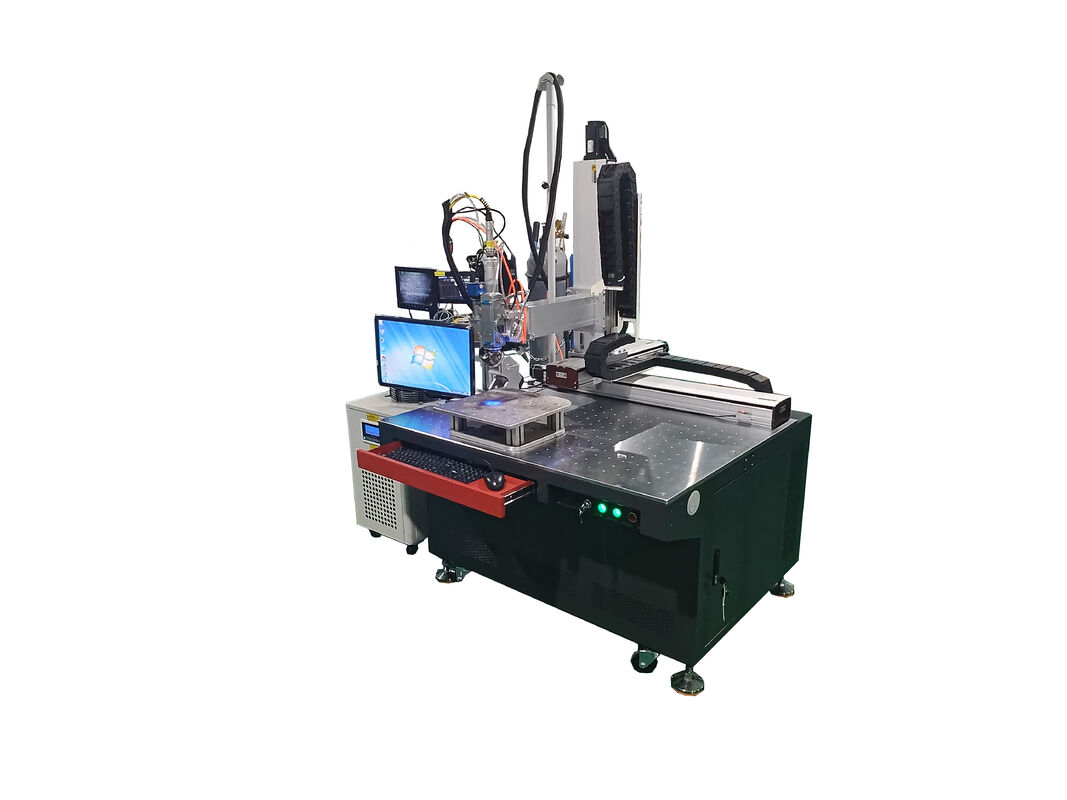

QCW LASER WELDING FOR LIQUID COOLING MANIFOLDS.HIGH PRECISION. LOW HEAT INPUT. LEAK-FREE PERFORMANCE. 3
