3-AXIS QCW LASER WELDING MACHINE, USED FOR LIQUID-COOLED COLD PLATE WELDING, CONTINUOUS LASER OUTPUT, RELIABLE QUALITY, ONE-YEAR MAINTENANCE SERVICE.

Place of Origin:

Shenzhen, China

Brand Name:

HaiLei Laser

Certification:

CE,CCC

Model Number:

HL-QCW-150W/300W/500W/1000W

Request A Quote

3-AXIS QCW LASER WELDING MACHINE, USED FOR LIQUID-COOLED COLD PLATE WELDING, CONTINUOUS LASER OUTPUT, RELIABLE QUALITY, ONE-YEAR MAINTENANCE SERVICE.

Product Details

Working Temperature:

0~35ºC

Beamquality:

M² < 1.5

Laser Mode:

Multimode

Spot Roundness:

90%

Dimensions:

600 Mm X 400 Mm X 150 Mm

Polarization State:

Linear

Pulse Width:

<1.5ns

Cooling Method:

Forced Air Cooling

Beam Diameter:

3~7 ,1/e2

Power Stability:

<2% RMS

Polarization Ratio:

>100:1

Repetitionrate:

1 Hz To 1000 Hz

Outputpower:

1000 W

Max Acceleration:

Cooling System:

Water Cooling

Payment & Shipping Terms

Minimum Order Quantity

1unit

Price

negotiable

Packaging Details

Packed with strong wooden cases

Delivery Time

5-8 working days

Payment Terms

T/T

Supply Ability

1500 units per month

4-AXIS QCW LASER WELDING MACHINE, USED FOR LIQUID-COOLED COLD PLATE WELDING, CONTINUOUS LASER OUTPUT, RELIABLE QUALITY, ONE-YEAR MAINTENANCE SERVICE.

Get Best Price

3-AXIS QCW LASER WELDING MACHINE, USED FOR LIQUID-COOLED COLD PLATE WELDING, CONTINUOUS LASER OUTPUT, RELIABLE QUALITY, ONE-YEAR MAINTENANCE SERVICE.

Get Best Price

Stainless Steel Bellows Laser Welding System for Spatter-free Energy Storage Liquid Cooling and Quick Coupler Welding

Get Best Price

Copper Laser Welding Machine for Low Distortion Cold Plate Welding and Vacuum Diffusion Bonding Alternative with High Reflectivity Solution

Get Best Price

Contact Now

Product Description

3-AXIS QCW LASER WELDING MACHINE

Traditional welding methods often suffer from thermal distortion, leakage risks, inconsistent quality, and limited suitability for microchannel cold plates. Laser welding provides a high-precision, low-heat-input solution that enables leak-free sealing, minimal deformation, and automated mass production for advanced liquid cooling applications.

Comparison Table

Challenge	Traditional Welding	Laser Welding
Thermal Distortion	High	Minimal
Leak Risk	Higher	Very Low
Microchannel Compatibility	Limited	Excellent
Weld Precision	Moderate	High
Automation Capability	Limited	Excellent
Production Speed	Lower	Higher
Post-Processing	Often Required	Minimal
Product Consistency	Variable	Highly Consistent

Our Advantage

Leak-free sealing performance
Ideal for microchannel cold plates
Minimal thermal distortion
High-speed automated production
Superior weld quality
Suitable for copper and aluminum applications
Enhanced product reliability
Optimized for AI server and data center liquid cooling

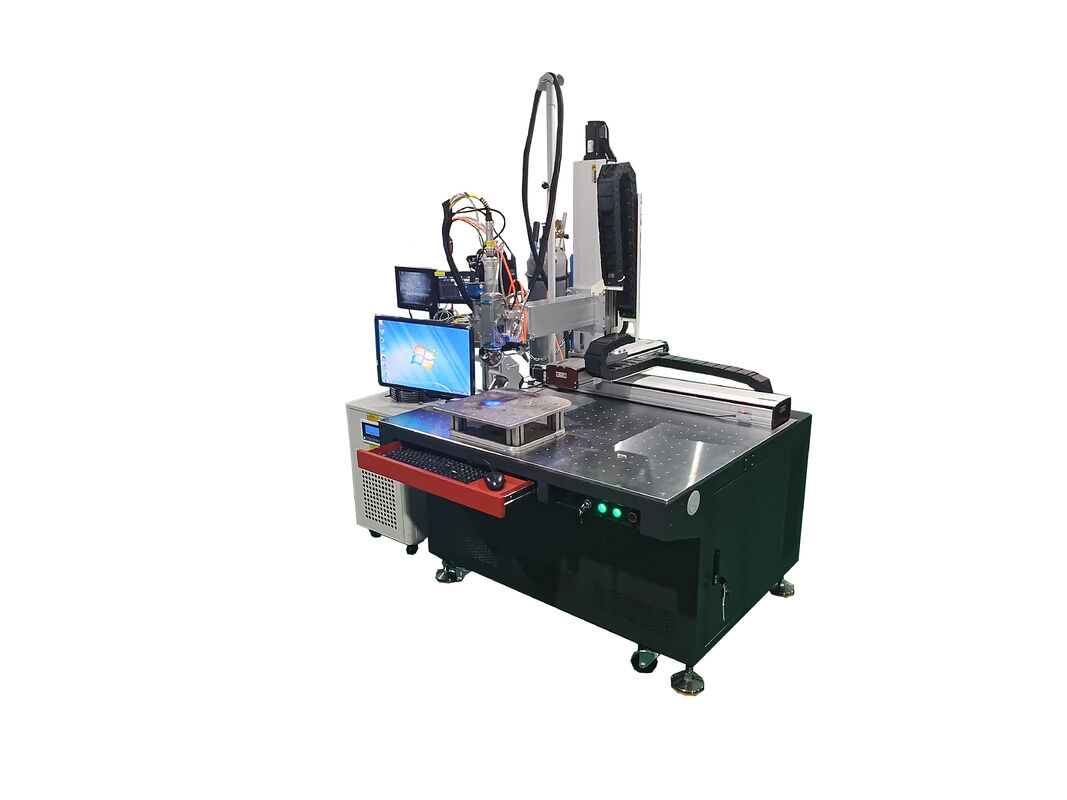

3-AXIS QCW LASER WELDING MACHINE, USED FOR LIQUID-COOLED COLD PLATE WELDING, CONTINUOUS LASER OUTPUT, RELIABLE QUALITY, ONE-YEAR MAINTENANCE SERVICE. 0

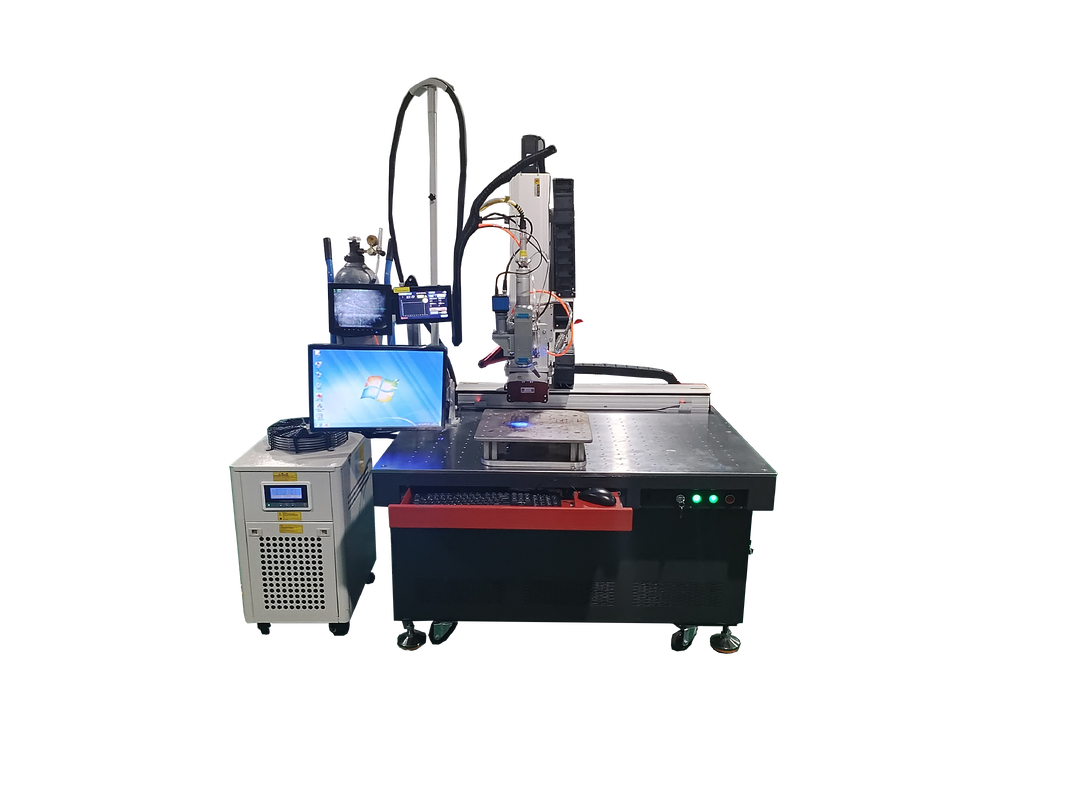

3-AXIS QCW LASER WELDING MACHINE, USED FOR LIQUID-COOLED COLD PLATE WELDING, CONTINUOUS LASER OUTPUT, RELIABLE QUALITY, ONE-YEAR MAINTENANCE SERVICE. 1

Technical parameter

Equipment type	HL-FW-500W	HL-FW-1000W
laser	Continuous fiber laser	Continuous fiber laser
Laser wavelength	1070NM±5NM	1070NM±5NM
Laser mode	multimode	multimode
Working mode	continuous	continuous
Average output power	500W	1000W
Average power consumed	2000W	4000W
Power regulation range	5-95%	5-95%
Power instability	2% or less	2% or less
Transmission fiber core diameter	50UM	50UM
Minimum spot	The 0.2 MM	The 0.2 MM
Fiber length	5M, 10M, 15M(optional)	5M, 10M, 15M(optional)
Cooling mode	water-cooling	water-cooling
Cooling water temperature	20 to 25 ℃	20 to 25 ℃
Power source	AC 220V±10%, 50/60HZ	AC 220V±10%, 50/60HZ
Operating ambient temperature	10 ~ 35 ℃	10 ~ 35 ℃
Working ambient humidity	95% or less	95% or less

Profession and Honor

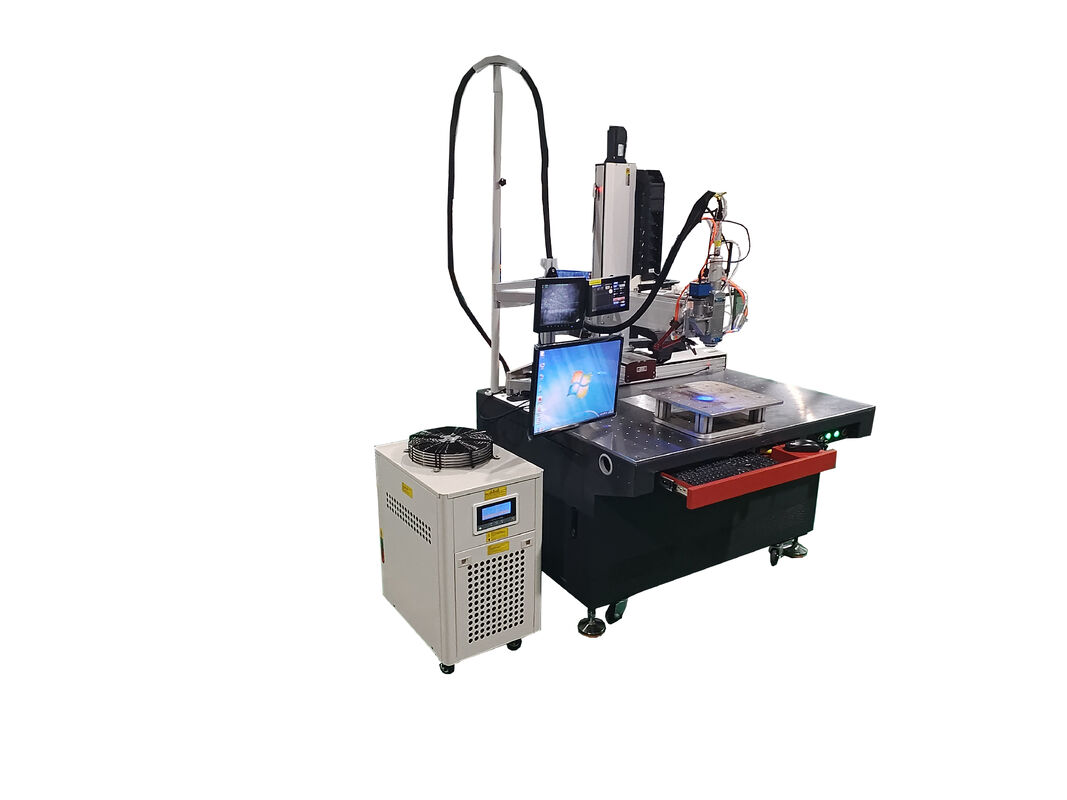

3-AXIS QCW LASER WELDING MACHINE, USED FOR LIQUID-COOLED COLD PLATE WELDING, CONTINUOUS LASER OUTPUT, RELIABLE QUALITY, ONE-YEAR MAINTENANCE SERVICE. 2
